Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 12408501 Wrapper, Outer Case Appelez-nous -
002 12296804 Pan, Access-e Ct Appelez-nous -
003 WP3388228 Screw Xxx   (Replaces: M0216703) Special Order $ 6.26

004 M0118705 Clip, Guide Appelez-nous -
005 10785608 Cover Light (ss) Appelez-nous -
005 M0249632 Screw, T F Appelez-nous -
005 M0274072 Spacer, Rubber Appelez-nous -
006 R9900114 Assy, Window Kit (light Lens) Special Order $ 18.60

007 12496801 Support, Shelf Appelez-nous -
008 12126601 Shield-grease Appelez-nous -
009 R0150144 Tray-ceramic Floor W/sealer Special Order $ 60.77

010 59002074 Asy, Base Pan 50 Hz Appelez-nous -
011 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

012 59001659 Screen Filter Special Order $ 21.65

013 12131301 Trim-oc Appelez-nous -
013 12991101 Screw, Sm   (Replaces: M0210816) Special Order $ 11.55

014 12486002 Base Cover, E Ct Appelez-nous -
014 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

015 59001643 Gasket,basepan - Cut Appelez-nous -
016 59001642 Gasket,basepan - Cut Appelez-nous -
017 W10841140 Sealer   (Replaces: M0275598) In-Stock Immediately $ 24.92


    View Diagram in Separate Window     Print Icon   Print Part List

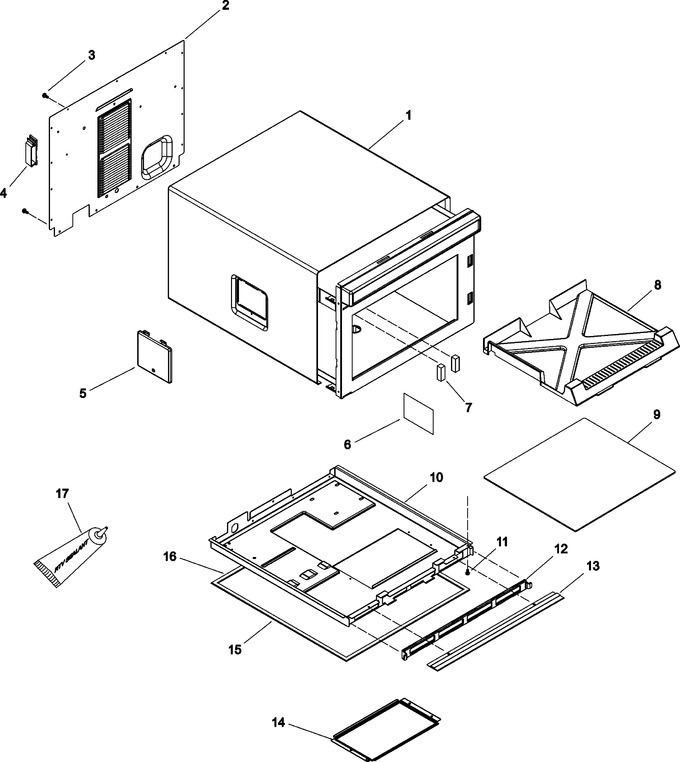

Diagram for DEC11E (BOM P1330512M)
