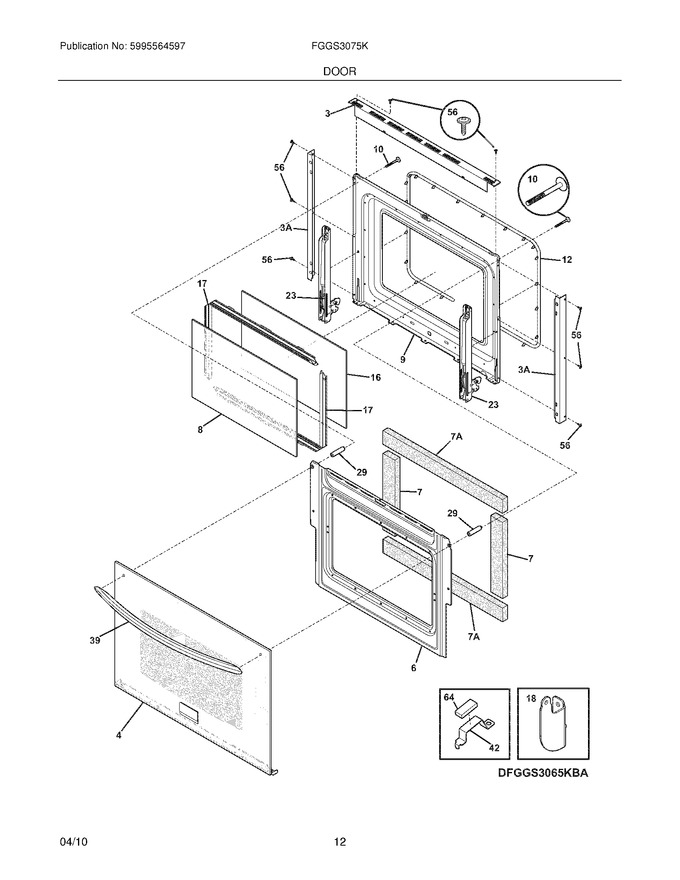

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260201		Trim,oven Door ,black ,upper				$ 57.91
4	318261316		Glass Assy.,oven Door ,black ,outer ,w/trim & Badge				$ 257.80
6	318260522		Baffle,door		Appelez-nous	-
7	318372017		Insulation,13.25 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372000)				$ 16.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	318259665		Liner,oven Door		Appelez-nous	-
10	5304477986		Screw(10-24x1.770),10-24 X 1.770 ,handle Mtg				$ 16.22
12	318053132		Gasket,oven Door Seal			Immediately	$ 159.56
16	318212210		Glass,oven Door ,heat Barrier ,lower Door				$ 173.72
17	318264733		Spacer,glass ,lower ,(2)   (Replaces: 318264710)				$ 72.05
18	316547900		Link,door ,(2) ,auto Rack				$ 20.56
23	318567101		Hinge,oven Door ,(2)				$ 76.18
29	318014405		Spacer,door		Appelez-nous	-
39	318927403		Handle,door/drawer ,stainless ,w/black Spacer		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
56	5304436875		Screw,8-18 X 1/2 ,black ,(3)				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372016		Insulation,24 X 2.375 ,1`` Thick ,(2)   (Replaces: 318372002)				$ 17.72
NI	316221001		Label,anti-tip		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
