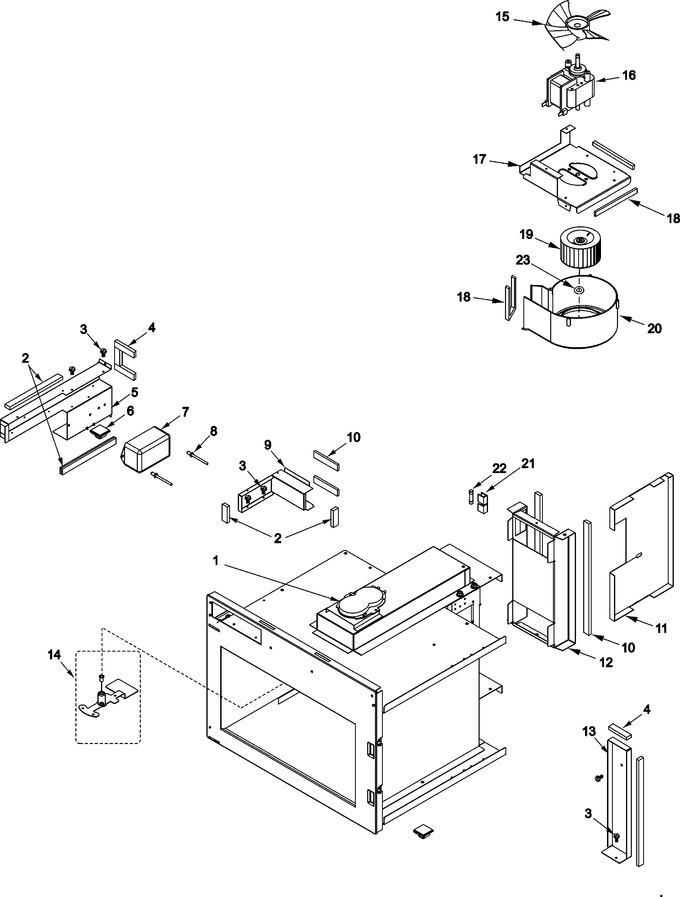

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	R0150197		Motor-stirrer (230v)		Appelez-nous	-
002	A3030330		Gasket,per Ft		Appelez-nous	-
003	12990522		Screw-sm/hex		Appelez-nous	-
004	A3030330		Gasket,per Ft		Appelez-nous	-
005	12135604		Duct,cav Exh-e Ct		Appelez-nous	-
006	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
007	59001893		Line Filter		Appelez-nous	-
008	A4539638		Rivet-pop		Appelez-nous	-
009	12135704		Assy, Exhaust Duct Kit		Appelez-nous	-
010	10839706		Gasket (per Foot)		Appelez-nous	-
011	59002000		Flow Divider		Appelez-nous	-
012	R0150161		Assy, Duct		Appelez-nous	-
013	12525701		Barrier, Air		Appelez-nous	-
014	R0150185		Assy, Ant/retainer		Appelez-nous	-
015	B5706704		Fan Blade				$ 8.23
016	12138105		Blower Motor		Appelez-nous	-
017	12271103		Brkt, Blower Mtg		Appelez-nous	-
018	A3030330		Gasket,per Ft		Appelez-nous	-
019	12138201		Wheel-blower				$ 10.37
020	12138302		Scroll-blower		Appelez-nous	-
021	10091101		Fuse Holder		Appelez-nous	-
021	12990606		Screw-sm/pan		Appelez-nous	-
022	M0805202		Fuse,15 Amp		Appelez-nous	-
023	M0118901		Clip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
