Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 M0216517 Screw Appelez-nous -
001 R0000244 Assy, Touch Panel Appelez-nous -
001 R9900111 Assy, Touch Panel Appelez-nous -
002 12131001 Endcap-esc (right) Appelez-nous -
003 12131002 Endcap-esc (left) Appelez-nous -
004 M0275163 Tape Per Roll Appelez-nous -
005 59001698 Hv/lv Board Appelez-nous -
005 M0227333 Screw,tc Appelez-nous -
006 12160602 Shield, Spill Appelez-nous -
007 12538901Q Assy,interlock Switch Appelez-nous -
007 M0237906 Screw-hi-lo Appelez-nous -
008 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

009 R9800022 Kit, Diode Special Order $ 97.11

010 12529501 Bracket, Diode Appelez-nous -
010 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

011 M0308801 Cap, Protective-threaded (red) Appelez-nous -
012 10172901Q Snubber Assembly Appelez-nous -
012 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

013 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

013 12QBP0508 Kit, Triac Assy   (Replaces: R0157373) Special Order $ 27.14

014 12136105 Transformer- Hv Appelez-nous -
014 M0251028 Screw, T.c. Appelez-nous -
015 12132501 Strap-capacitor Appelez-nous -
015 59174533 Capacitor-.65   (Replaces: 59001159) Special Order $ 53.65

015 WP488234 Screw   (Replaces: M0234422) Special Order $ 6.07

016 B5669025 Cord-power Appelez-nous -
016 B5669026 Cord-power Appelez-nous -
017 M0370009 Relief- Strain Appelez-nous -
018 B5684121 Cut Out, Thermal Special Order $ 9.17

018 B8380601 Plate, Thermal Cutout Appelez-nous -
018 M0229916 Screw T.c Appelez-nous -
019 B5677203 Terminal Block Appelez-nous -
019 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

020 D7831007 Magnetron-t Appelez-nous -
021 44780P01 Toroid (arc Suppressor) Appelez-nous -
022 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.00

023 M0253540 Screw-tc Appelez-nous -
024 59001667 Thermal Cut Out Appelez-nous -
024 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

025 12163802 Receptacle-export Appelez-nous -
026 M0360402 Light Bulb (230/240 Vac) Appelez-nous -
027 12544201 Barrier,lamp Appelez-nous -
028 WP489128 Screw   (Replaces: M0253516) Special Order $ 9.79


    View Diagram in Separate Window     Print Icon   Print Part List

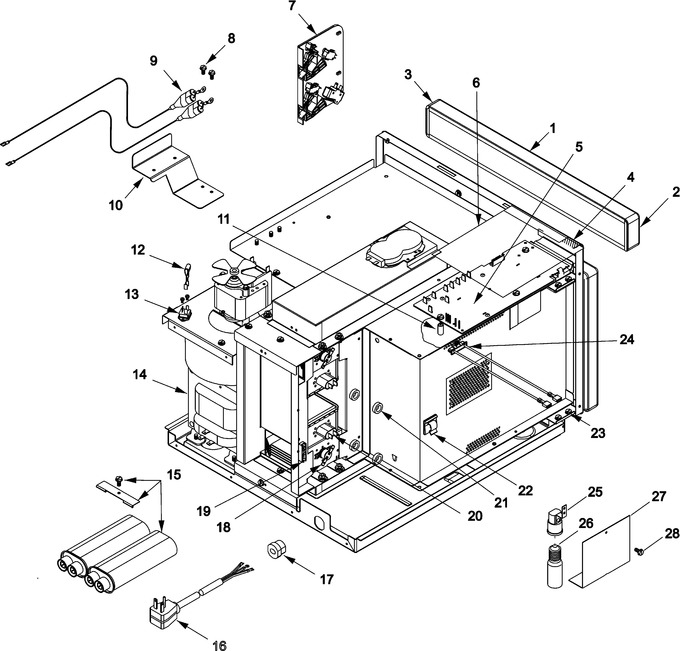

Diagram for DEC14E (BOM P1330516M)
