Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 R0000244 Assy, Touch Panel Appelez-nous -
12 R0000036 Assy, Base Pan Appelez-nous -
21 12131001 Endcap-esc (right) Appelez-nous -
22 10732514Q Gasket,basepan - Cut Appelez-nous -
31 12131002 Endcap-esc (left) Appelez-nous -
32 10732515Q Gasket,basepan - Cut Appelez-nous -
41 12538901Q Assy,interlock Switch Appelez-nous -
42 12136105 Transformer- Hv Appelez-nous -
51 12131301 Trim-oc Appelez-nous -
52 M0251028 Screw, T.c. Appelez-nous -
61 R0150144 Tray-ceramic Floor W/sealer Special Order $ 60.77

62 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

71 R9800022 Kit, Diode Special Order $ 97.11

72 12486002 Base Cover, E Ct Appelez-nous -
81 R9900585 Kit,antenna(bottom) Special Order $ 95.02

91 R0150185 Assy, Ant/retainer Appelez-nous -
101 M0237906 Screw-hi-lo Appelez-nous -
111 12991101 Screw, Sm   (Replaces: M0210816) Special Order $ 11.55

131 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

141 M0216517 Screw Appelez-nous -
151 12496801 Support, Shelf Appelez-nous -
161 W10841140 Sealer   (Replaces: M0275598) In-Stock Immediately $ 24.92


    View Diagram in Separate Window     Print Icon   Print Part List

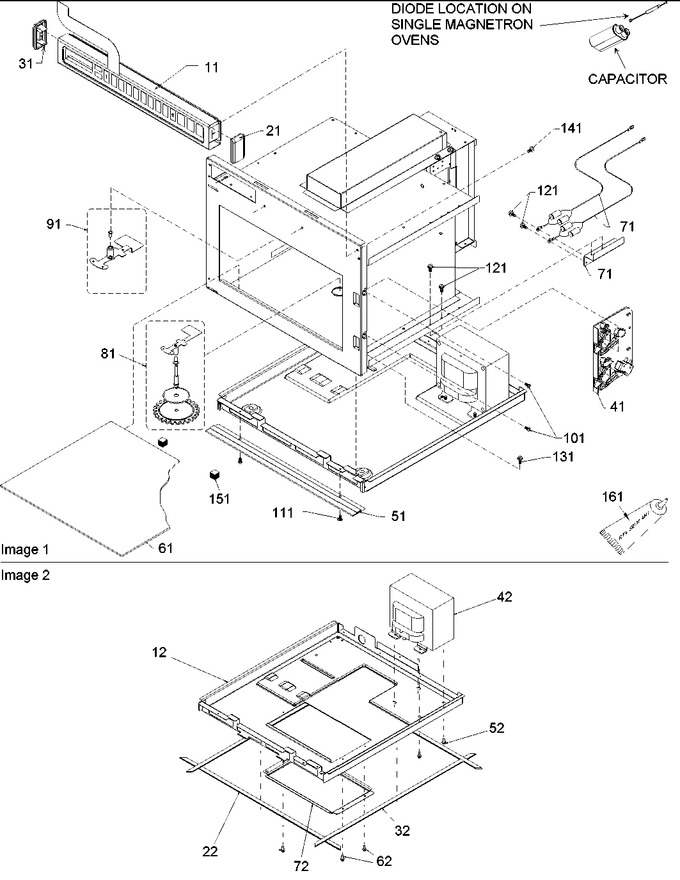

Diagram for DEC14E (BOM: P1325207M)
