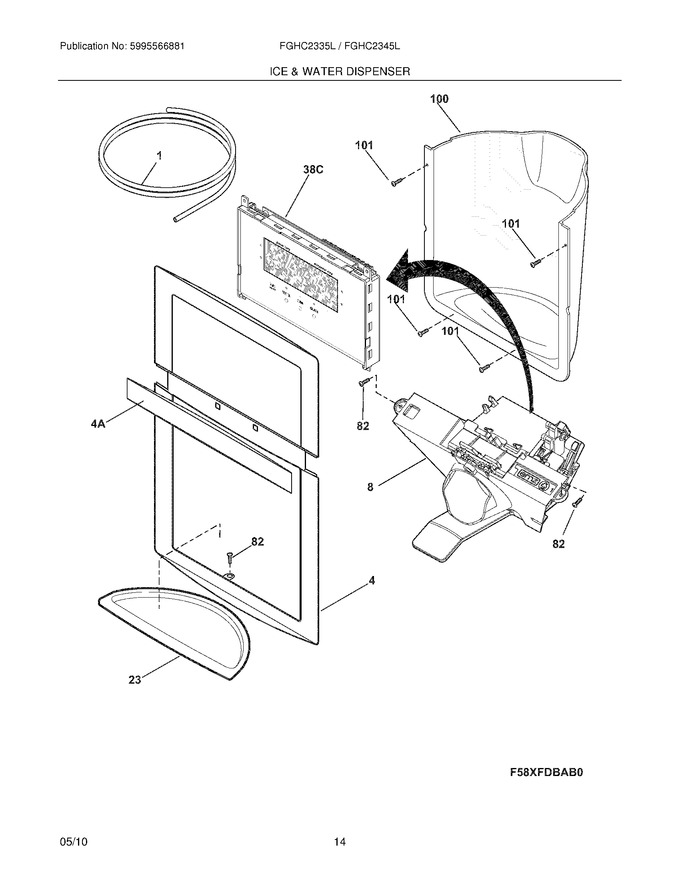

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	242034203		Cover-module,gray				$ 156.14
8	242074223		Module-dispenser   (Replaces: 242074205)				$ 255.15
23	242092404		Drip Tray,gray				$ 33.86
82	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
82	240363403		Screw,8-18 X 0.500 ,2		Appelez-nous	-
100	241753304		Liner-sump,gray		Appelez-nous	-
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 13.46
4A	242033903		Trim,dispenser ,gray				$ 30.92
F38C	242115004		Board-control,assembly				$ 299.56
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 40.40
NI	218976421		Tube-water Inlet,valve To Door				$ 20.56
NI	218515403		Clip-grille				$ 29.06
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker   (Replaces: 240561702)			Immediately	$ 20.56
