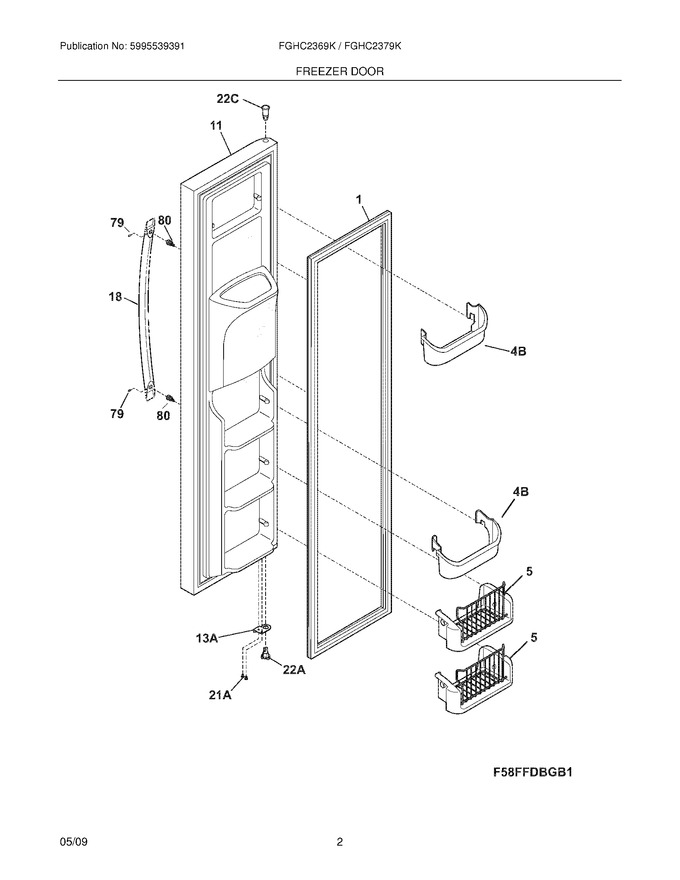

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	241545001		Bin-tilt Out,tilt-out				$ 213.10
11	241993805		Door-frzr,white ,complete Assy		Appelez-nous	-
18	241930101		Handle-door,stainless				$ 160.88
74	218755405		Screw-set,10-32 X 0.650			Immediately	$ 20.56
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	241942604		Door Stop,black ,frzr				$ 20.56
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22A	241990302		Bearing-hinge(frz),closer				$ 7.09
22C	241760401		Bearing,hinge ,top			Immediately	$ 19.13
4B	241511602		Bin-door,pseudo ,frzr   (Replaces: 241808225)				$ 52.72
F1	241510202		Gasket-frzr Door,white ,magnetic				$ 286.53
FNI	241834703		Harness-wiring,door				$ 109.96
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	240451503		Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe				$ 3.79
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
