SELECT A DIAGRAM

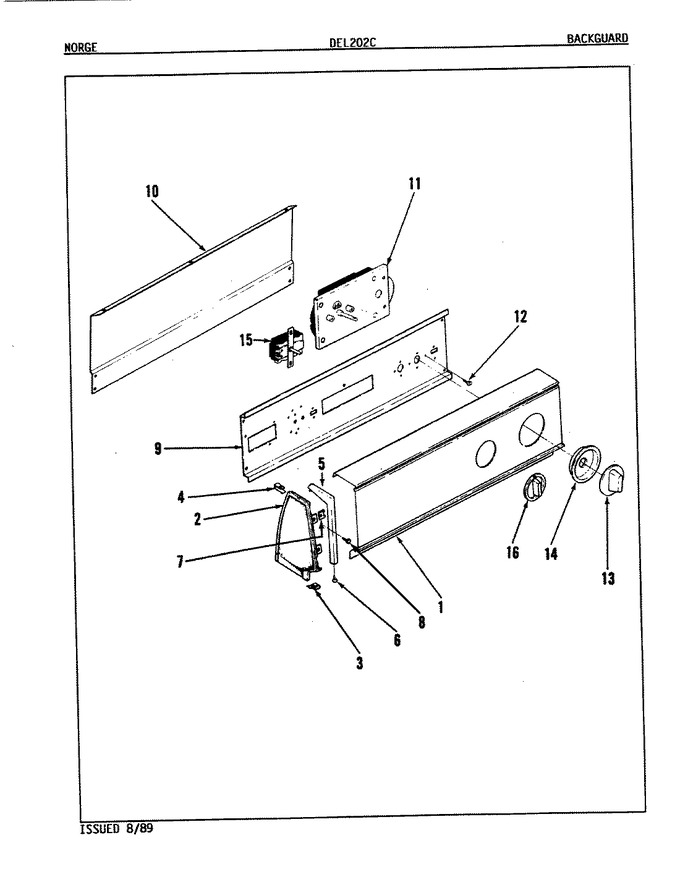

01 - Control Panel (orig. Rev. A-b)


02 - Cylinder & Drive (orig.-rev. A-b)


03 - Exterior (orig. Rev. A-b)


04 - Heater (orig. Rev. A-b)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1285		Control Panel		Appelez-nous	-
2	53-0264		Rh Endcap		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	25-7649		Screw		Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
5	53-0280		Trim, End Cap (lt)		Appelez-nous	-
5	53-0279		Trim, End Cap (rt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-0365		Control Shield		Appelez-nous	-
10	53-0268		Rear Shield		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
10	WP12990527		Screw, Sems   (Replaces: 25-3457)			Immediately	$ 7.15
11	53-0635		Timer Motor		Appelez-nous	-
11	53-1549		Timer	B	Appelez-nous	-
11	53-1364		Timer		Appelez-nous	-
12	25-0205		Screw		Appelez-nous	-
13	53-1290		Skirt, Timer		Appelez-nous	-
14	53-1530		Timer Knob & Skirt Assy		Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
15	53-0456		Switch, Selector (heat)		Appelez-nous	-
16	35-2186		Knob, Selector		Appelez-nous	-
16	63-6731		Buzzer		Appelez-nous	-
