Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3015393 Pnl Manifold Appelez-nous -
2 3131703 Knob-thermo Appelez-nous -
3 3131910 Knob Top Valve Appelez-nous -
4 3934004 Pnl Main Top-almond Appelez-nous -
5 618T038P05 Rod-main Top Supt. Appelez-nous -
6 3131286 Brkt Main Top Hng Lh Appelez-nous -
7 3131287 Brk Main Top Hng Rh Appelez-nous -
8 283T013W01-18 Grate Appelez-nous -
*15535 612T124P01 Retainer - Wire Appelez-nous -

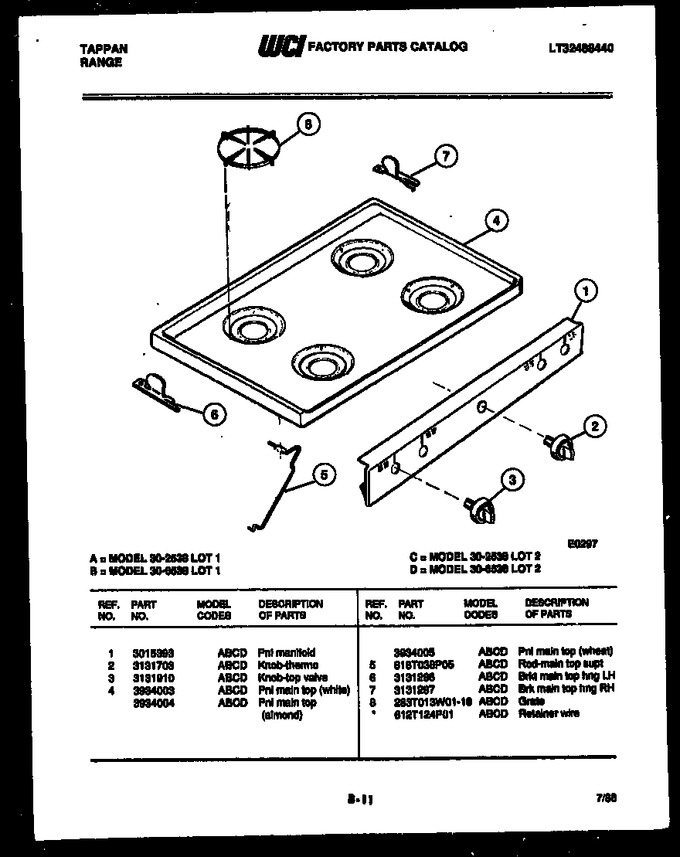

    View Diagram in Separate Window     Print Icon   Print Part List
