SELECT A DIAGRAM

01 - Control Panel (rev. A-d)


02 - Control Panel (rev. E-g)


03 - Cylinder & Drive (rev. A-d)


04 - Cylinder & Drive (rev.e-g)


05 - Exterior (rev. A-d)


06 - Exterior (rev. E-g)


07 - Heater (rev. A-d)


08 - Heater (rev. E-g)

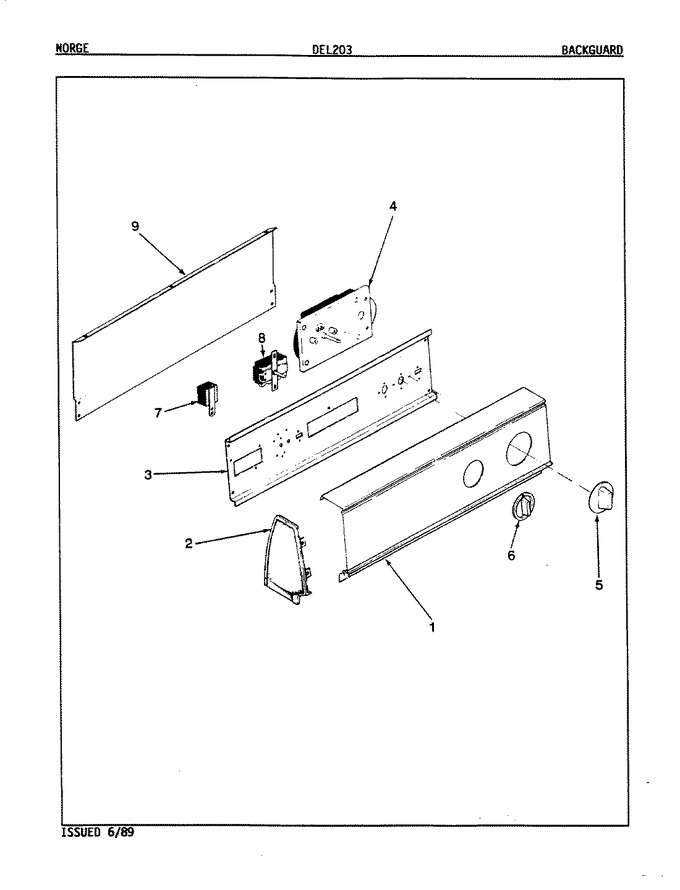

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
1	25-7793		Screw		Appelez-nous	-
1	53-1284		Control Panel		Appelez-nous	-
2	25-7760		Screw		Appelez-nous	-
2	53-0264		Rh Endcap		Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
2	53-0277		Trim, End Cap (rt)		Appelez-nous	-
2	53-0278		Trim, End Cap (lt)		Appelez-nous	-
2	35-2487		Cap, End (rt)	D	Appelez-nous	-
2	53-2488		Insert, Instruction	D	Appelez-nous	-
3	53-1676		Shield, Control	D	Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
3	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
3	53-0365		Control Shield		Appelez-nous	-
4	53-1303CP		Timer   (Replaces: 53-1303)		Appelez-nous	-
4	53-1758		Timer	D	Appelez-nous	-
4	63-6752		Timer Motor		Appelez-nous	-
4	25-0205		Screw		Appelez-nous	-
5	53-1357		Knob Assy-timer		Appelez-nous	-
5	25-6044		Set Screw		Appelez-nous	-
6	35-2186		Knob, Selector		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
7	63-6731		Buzzer		Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
8	53-1265		Rotary Switch		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
9	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
9	34-9487		Plate, Reinforcement		Appelez-nous	-
9	53-0268		Rear Shield		Appelez-nous	-
9	25-7697		Screw		Appelez-nous	-
9	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	63-6743		Resistor Assy.		Appelez-nous	-
9	35-2688		Shield, Control Panel (rear)	D	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
