Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11117769 Leg, Leveling   (Replaces: 63-5519) In-Stock Immediately $ 16.61

2 53-0120 Clip, Front Panel Special Order $ 11.32

3 16515 Clip, Wiring   (Replaces: 25-7027) Special Order $ 17.60

4 WP90767 Screw   (Replaces: 25-7741) In-Stock Immediately $ 7.04

4 53-0153 Shield, Wiring Appelez-nous -
5 WP681414 Screw   (Replaces: 25-7733) In-Stock Immediately $ 7.07

5 53-0131 Bulkhead Appelez-nous -
6 WP31001637 Seal Assy (gray)   (Replaces: 53-0282) Special Order $ 30.62

7 53-0178 Tumbler Assy. Appelez-nous -
8 WP3196164 Screw   (Replaces: 25-7759) In-Stock Immediately $ 7.82

8 53-0117 Baffle, Gray Appelez-nous -
9 341241 Cylinder Belt   (Replaces: 53-1080) In-Stock Immediately $ 16.34

9 LA-1004 Motor Mtg. Kit (dryer) Appelez-nous -
10 53-2277 Motor & Pulley Assy (230v,50hz D Appelez-nous -
10 53-1043 Motor Asm 230/50 Appelez-nous -
11 53-0693 Switch, Motor Appelez-nous -
12 53-1932 Motor Mtg. Brkt. D Appelez-nous -
12 53-0852 Motor Bracket Appelez-nous -
12 25-7811 Screw Appelez-nous -
13 WP660658 Clamp, Motor   (Replaces: 53-0214) Special Order $ 7.05

13 25-7674 Screw Appelez-nous -
14 25-7815 Washer D Appelez-nous -
14 25-7957 Pushnut D Special Order $ 6.41

14 WP53-2287 Idler Assy.   (Replaces: 53-2287) D Special Order $ 125.71

14 53-0764 Idler Arm Appelez-nous -
14 WP53-2287 Arm, Idler   (Replaces: 53-2250) D Special Order $ 125.71

14 WP31001344 Pulley, Idler   (Replaces: 53-1628) C In-Stock Immediately $ 42.91

15 53-2209 Spring, Idler D Appelez-nous -
15 53-0207 Idler Spring Appelez-nous -
15 53-1648 Idler Spring C Appelez-nous -
16 WP90767 Screw   (Replaces: 25-2134) In-Stock Immediately $ 7.04

16 53-0134 Duct, Exhaust Appelez-nous -
17 53-1801 Housing, Blower D Appelez-nous -
17 53-0774 Blower Housing Appelez-nous -
18 12001324 Seal, Blower Housing   (Replaces: 53-0203) Special Order $ 187.37

19 53-0106 Blower Wheel Special Order $ 58.02

20 WP312967 Clamp   (Replaces: 25-7823) In-Stock Immediately $ 10.68

21 25-7855 Ring, Retaining Special Order $ 8.67

22 WP33002917 Screw   (Replaces: 25-7807) In-Stock Immediately $ 6.90

22 53-1024 Blower Cover Appelez-nous -
22 WP90767 Screw   (Replaces: 25-2134) In-Stock Immediately $ 7.04

22 53-1933 Cover, Blower Housing D Appelez-nous -
22 53-1026 Guide, Vane Inlet Appelez-nous -
23 WP53-1107 Thermostat, Control (146/121)   (Replaces: 53-1107) Special Order $ 81.25

24 53-0170 Thermostat, Lo-limit (120/110) Appelez-nous -
24 WP90767 Screw   (Replaces: 25-2134) In-Stock Immediately $ 7.04

25 W10124350 Not Required Part Or See Note Not Required Appelez-nous -
26 W10124350 Not Required Part Or See Note Not Required Appelez-nous -
27 W10124350 Not Required Part Or See Note Not Required Appelez-nous -
28 W10124350 Not Required Part Or See Note Not Required Appelez-nous -
28 LA-1006 Glide Kit, Tumbler In-Stock Immediately $ 25.12

29 WP31001356 Rh Gld Cushion   (Replaces: 53-0182) Special Order $ 76.16

30 WP31001469 Rh Cyl Glide   (Replaces: 53-0183) Special Order $ 66.66

31 W10124350 Not Required Part Or See Note Not Required Appelez-nous -
32 12002126 Front Roller Kit   (Replaces: LA-1007) Special Order $ 127.91

33 25-7813 Spacer Appelez-nous -
34 25-7814 Washer Special Order $ 5.33

35 WP25-7854 Ring, Retaining   (Replaces: 25-7854) Special Order $ 10.68

36 WP31001356 Lh Glide Cushion   (Replaces: 53-0723) Special Order $ 76.16

37 WP31001470 Lh Cyl Glide   (Replaces: 53-0185) Special Order $ 67.36

37 LA-1008 Rr Roller Kit Special Order $ 66.73

38 WP3351614 Screw   (Replaces: 25-7101) In-Stock Immediately $ 6.26

38 WP53-0197 Support Assy.-cylinder Rear   (Replaces: 53-0197) Special Order $ 81.21

39 53-0642 Cyl Roller Appelez-nous -
40 25-7813 Spacer Appelez-nous -
41 25-7814 Washer Special Order $ 5.33

42 WP25-7854 Ring, Retaining   (Replaces: 25-7854) Special Order $ 10.68

43 W10124350 Not Required Part Or See Note Not Required Appelez-nous -
44 W10124350 Not Required Part Or See Note Not Required Appelez-nous -
45 53-1452 Manual, Use & Care Appelez-nous -
45 53-1452-1 Manual, Use & Care D Appelez-nous -
NI 63-5577 Manual, Use & Care Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

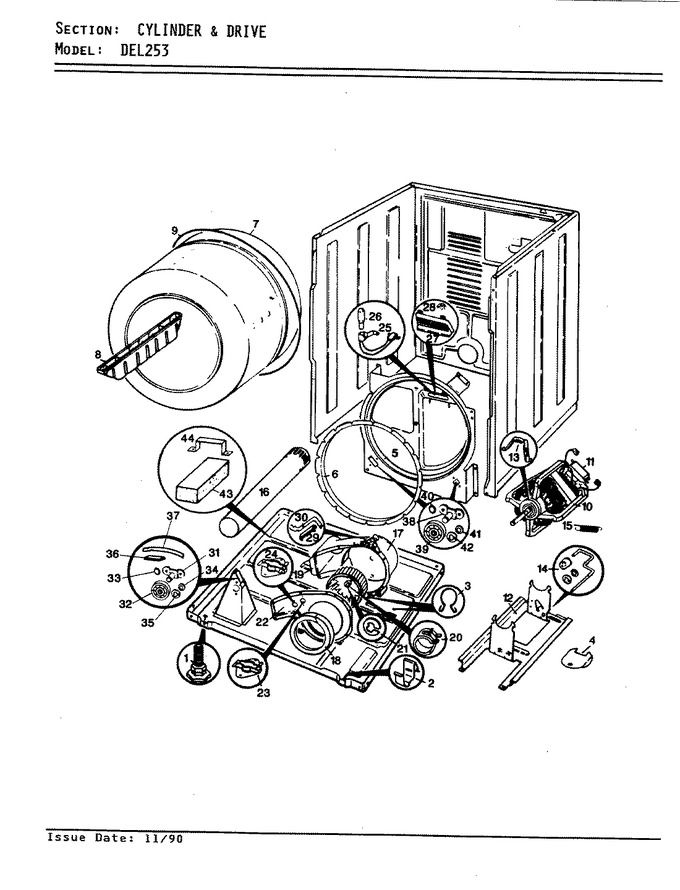

Diagram for DEL253W
