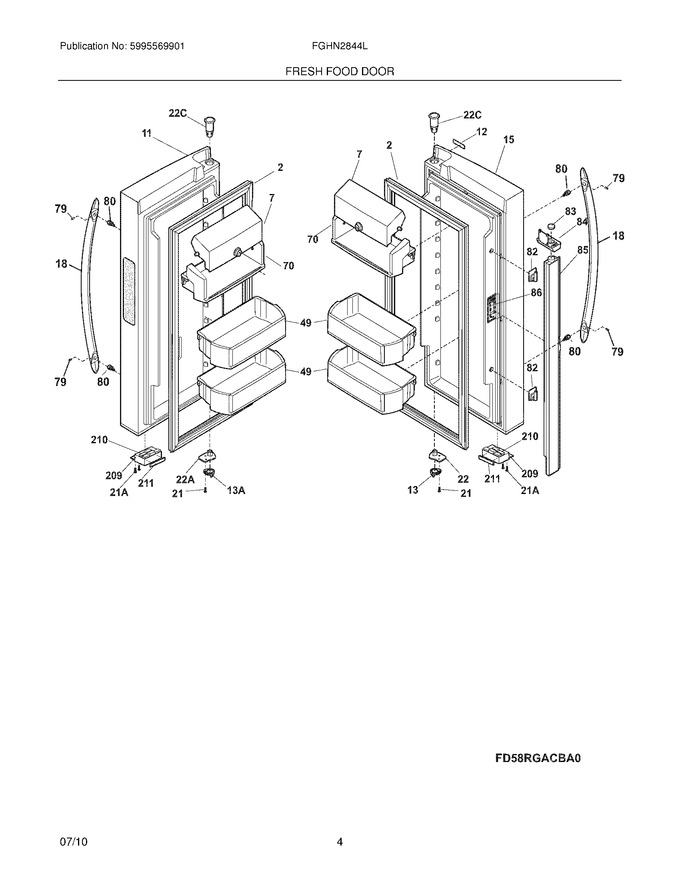

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Freezer Drawer-basket
05 - Fresh Food Doors
07 - Cabinet
09 - Shelves
11 - System
13 - Control
15 - Icemaker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-door,white (Replaces: 241778301) |
|
Immediately | $ 89.88 | ||||
| 7 | 242011401 | Door-dairy,removable |
|
- | |||||
| 11 | 241988058 | Door-refr,white ,lh |
|
- | |||||
| 12 | 242015201 | Label-nameplate |
|
Immediately | $ 6.90 | ||||
| 13 | 241868401 | Door Stop,refrig Rh ,plated |
|
$ 18.43 | |||||
| 15 | 241988049 | Door-refr,white ,rh |
|
$ 446.15 | |||||
| 18 | 297437820 | Handle-door,white ,(2) (Replaces: 241930102) |
|
$ 111.99 | |||||
| 21 | 242017501 | Screw,10-32 X 0.750 |
|
$ 15.60 | |||||
| 22 | 242075601 | Cam,upper Hinge ,rh |
|
$ 23.31 | |||||
| 49 | 242079701 | Bin-door,gallon (Replaces: 242011501) |
|
Immediately | $ 110.95 | ||||
| 70 | 241804604 | Compartment-dairy,removable |
|
- | |||||
| 79 | 218755405 | Screw-set,10-32 X 0.650 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion,upper/lower ,flipper |
|
Immediately | $ 21.99 | ||||
| 83 | 241812201 | Magnet,door |
|
$ 65.92 | |||||
| 84 | 5303918644 | Guide-mullion Flipper (Replaces: 241779702) |
|
$ 41.44 | |||||
| 85 | 241778808 | Flipper Mullion Assembly (Replaces: 241778801) |
|
Immediately | $ 315.40 | ||||
| 86 | 241779802 | Hinge-mullion,center ,flipper (Replaces: 241779801) |
|
Immediately | $ 36.73 | ||||
| 209 | 242291001 | Housing-magnet,white (Replaces: 242021001) |
|
$ 20.48 | |||||
| 210 | 241779101 | Magnet,door (Replaces: 241779103) |
|
Immediately | $ 31.19 | ||||
| 211 | 241979601 | Bumper,rubber |
|
$ 22.68 | |||||
| 13A | 241868402 | Door Stop,refr Lh ,plated |
|
$ 18.43 | |||||
| 21A | 5304453707 | Screw,no.8-18 (Replaces: 241953901) |
|
Immediately | $ 15.92 | ||||
| 22A | 242075602 | Cam,upper Hinge ,lh |
|
$ 25.02 | |||||
| 22C | 241760401 | Bearing,hinge ,top |
|
Immediately | $ 19.13 | ||||
| FNI | 242045402 | Harness-wiring,door |
|
$ 62.37 | |||||
| NI | 242068601 | Bumper,rh Door |
|
$ 14.41 | |||||
| NI | 241806601 | Connector-water,straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 317.38 | |||||
| NI | 5304520993 | Harness-wiring,flipper Mullion (Replaces: 241788401) |
|
Immediately | $ 41.97 | ||||
| NI | 240451503 | Screw (Replaces: 242064001) |
|
$ 3.79 | |||||
| NI | 241701901 | Screw Driver |
|
- | |||||
| NI | 241601001 | Wrench,allen |
|
- | |||||
| NI | 241891401 | Cover-light,led |
|
$ 13.19 | |||||
| NI | 242015001 | Screw,no.10 8-19 X 1/2 |
|
Immediately | $ 16.30 |
