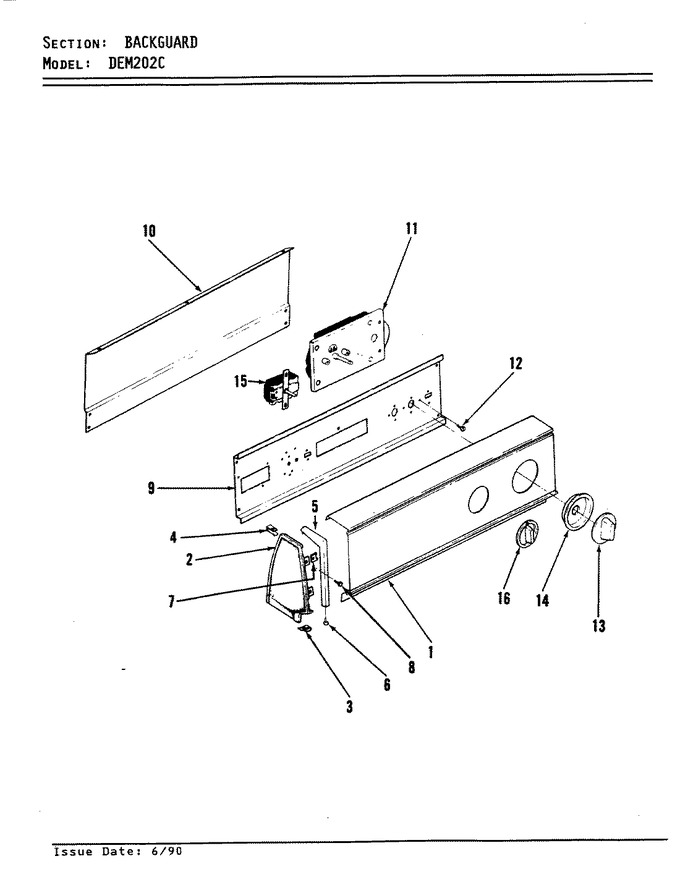

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-1613		Control Panel		Appelez-nous	-
1	53-2306		Control Panel	C	Appelez-nous	-
2	53-0265		Lh Endcap		Appelez-nous	-
2	53-0264		Rh Endcap		Appelez-nous	-
2	25-7649		Screw		Appelez-nous	-
2	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
2	35-2487		Cap, End (rt)	A	Appelez-nous	-
2	35-2488		Cap, End (lt)	A	Appelez-nous	-
3	25-7697		Screw		Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top		Appelez-nous	-
4	25-7852		Speedclip, Rr Shld To End Cap		Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)			Immediately	$ 6.90
5	53-0279		Trim, End Cap (rt)		Appelez-nous	-
5	53-0280		Trim, End Cap (lt)		Appelez-nous	-
6	25-7760		Screw		Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl		Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
9	53-1676		Shield, Control	A	Appelez-nous	-
9	53-0365		Control Shield		Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
10	53-0268		Rear Shield		Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)	A	Appelez-nous	-
11	53-1803		Timer	D	Appelez-nous	-
11	53-1549		Timer		Appelez-nous	-
11	53-0635		Timer Motor		Appelez-nous	-
12	25-0205		Screw		Appelez-nous	-
12	WP33002917		Screw   (Replaces: 25-7435)	D		Immediately	$ 6.90
13	53-1290		Skirt, Timer		Appelez-nous	-
14	53-1530		Timer Knob & Skirt Assy		Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)			Immediately	$ 7.04
15	53-1267		Rotary Switch		Appelez-nous	-
16	63-6731		Buzzer		Appelez-nous	-
16	35-2186		Knob, Selector		Appelez-nous	-
NI	53-1446		Manual, Use & Care		Appelez-nous	-
