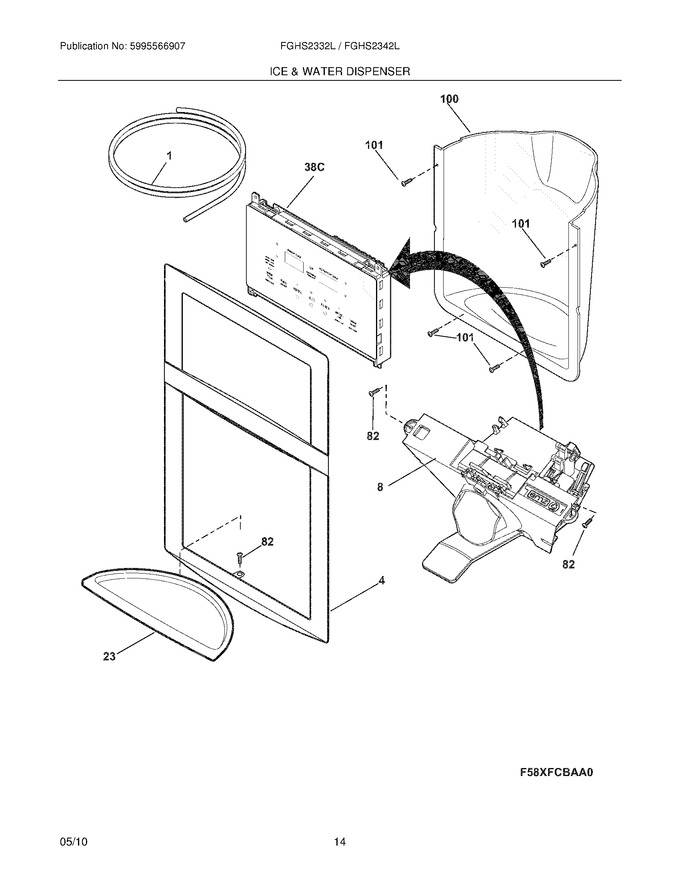

SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	242089602		Cover-module,white   (Replaces: 242089601)				$ 80.39
8	242074214		Module-dispenser,white   (Replaces: 242074202)				$ 256.57
23	242092401		Drip Tray,white		Appelez-nous	-
82	240363403		Screw,8-18 X 0.500 ,2		Appelez-nous	-
100	241753303		Liner-sump,white		Appelez-nous	-
101	5304453707		Screw,plask ,no.8-18 X .500   (Replaces: 240363402)			Immediately	$ 15.92
F38C	242114903		Board-control				$ 239.30
NI	241850615		Tube-water Inlet,inlet Valve ,to I/m Inlet   (Replaces: 218976915)				$ 34.73
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 40.40
NI	218976419		Tube-water Inlet,valve To Door				$ 22.68
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56

    View Diagram in Separate Window       Print Part List
