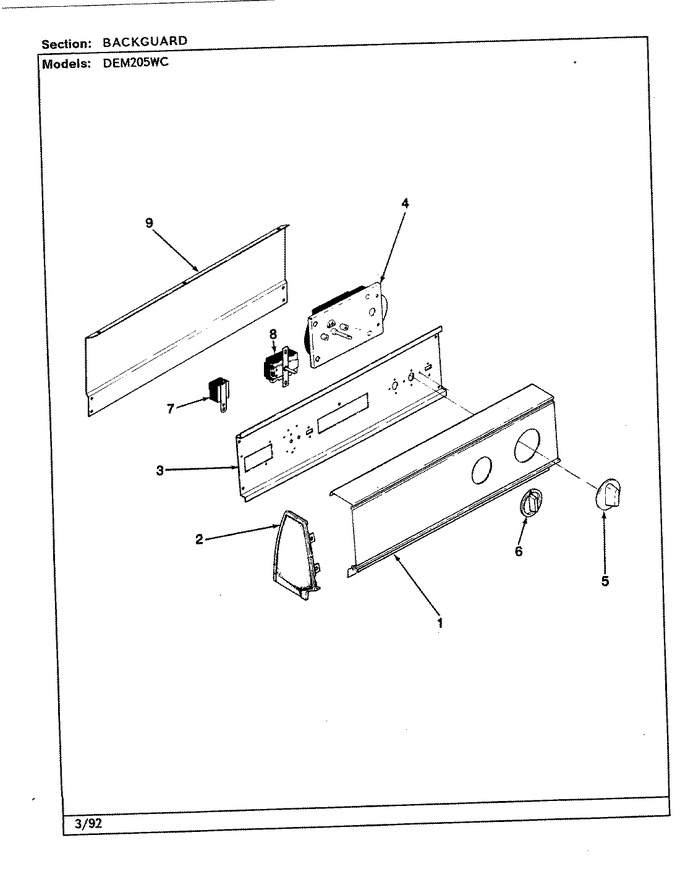

01 - Control Panel (rev. A-b)(wht)
02 - Cylinder & Drive
03 - Exterior (rev. A-b)(wht)
04 - Heater (rev. A-b)(wht)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 1 | 25-7793 | Screw |
|
- | |||||
| 1 | 53-1825 | Control Panel |
|
- | |||||
| 2 | 25-7760 | Screw |
|
- | |||||
| 2 | 35-2668 | Cap, End (rt)(wht) |
|
- | |||||
| 2 | 53-0277 | Trim, End Cap (rt) |
|
- | |||||
| 2 | 53-0278 | Trim, End Cap (lt) |
|
- | |||||
| 2 | 35-2669 | Cap, End (lt)(wht) |
|
- | |||||
| 3 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 3 | 53-1676 | Shield, Control |
|
- | |||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 3 | 53-2504 | Spacer, Control Shield |
|
- | |||||
| 4 | 53-1758 | Timer |
|
- | |||||
| 4 | 63-6752 | Timer Motor |
|
- | |||||
| 4 | 25-0205 | Screw |
|
- | |||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) |
|
Immediately | $ 6.90 | ||||
| 4 | 53-1303CP | Timer (Replaces: 53-1303) |
|
- | |||||
| 5 | 25-6044 | Set Screw |
|
- | |||||
| 5 | 53-1828 | Knob & Skirt Assy |
|
- | |||||
| 6 | 35-2940 | Knob, Selector (wht) |
|
- | |||||
| 7 | 25-7702 | Speedclip, End Cap To Ctrl Pnl |
|
- | |||||
| 7 | 53-1666 | Buzzer - Adjustable |
|
- | |||||
| 7 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 8 | 53-0344 | Switch, Temperature |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 9 | 63-6743 | Resistor Assy. |
|
- | |||||
| 9 | 25-7697 | Screw |
|
- | |||||
| 9 | 25-7851 | Speedclip, End Cap To Top |
|
- | |||||
| 9 | WP90767 | Screw (Replaces: 25-3092) |
|
Immediately | $ 7.04 | ||||
| 9 | 35-2688 | Shield, Control Panel (rear) |
|
- | |||||
| 9 | 34-9487 | Plate, Reinforcement |
|
- | |||||
| 10 | 53-1829 | Manual, Use & Care |
|
- |
