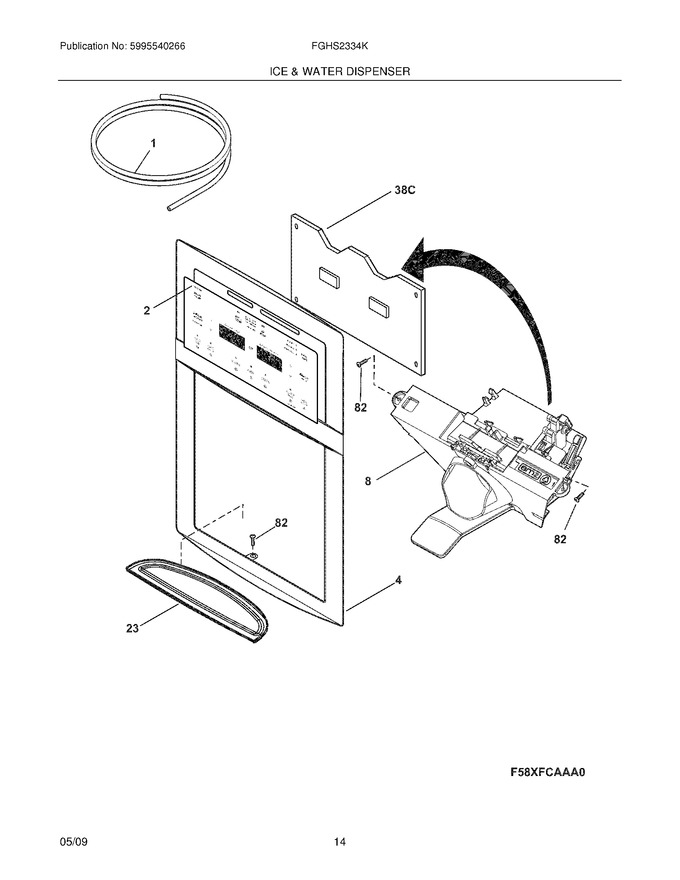

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
2	241973804		Switch Assembly,overlay ,black				$ 139.81
4	241946808		Cover-module,black				$ 98.07
8	242074213		Module-dispenser,black   (Replaces: 241753408)				$ 255.86
23	241947003		Drip Tray,black				$ 23.39
82	5304453707		Screw-no.8-18 X 1/2,no.6 Hd Plask   (Replaces: 240363402)			Immediately	$ 15.92
F38C	241973711		Board-control   (Replaces: 241973702)			Immediately	$ 347.34
NI	218976419		Tube-water Inlet,valve To Door				$ 22.68
NI	241850615		Tube-water Inlet,inlet Valve ,to Filter   (Replaces: 218976915)				$ 34.73
NI	218976429		Tube-water Inlet,97.50`` ,brown/tan				$ 40.40
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	5303918596		Dispenser Heater Kit,115   (Replaces: 5303918371)				$ 317.38

    View Diagram in Separate Window       Print Part List
