02 - Cabinet

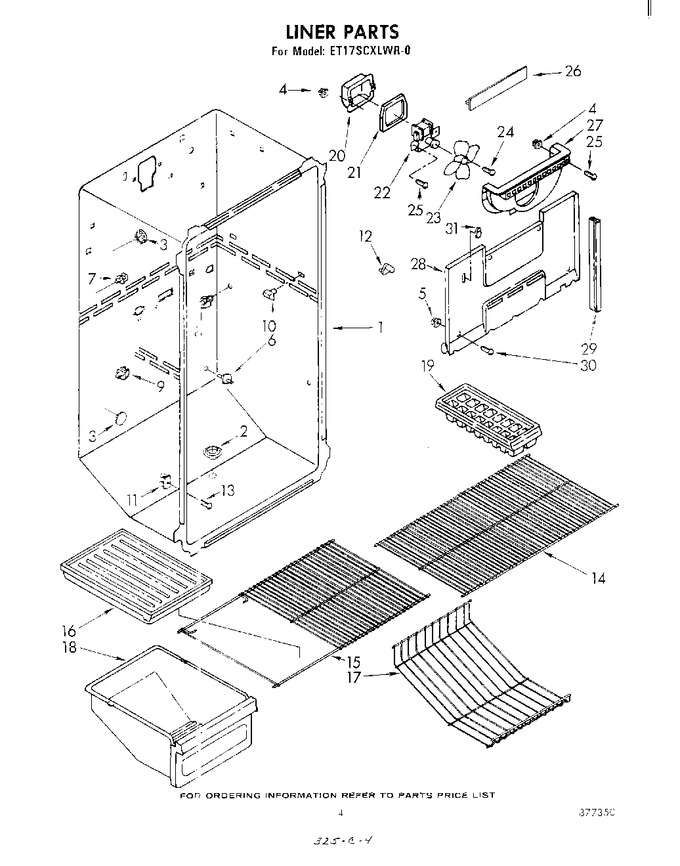

03 - Liner
04 - Breaker And Partition
05 - Unit
06 - Door , Not Illustrated And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 835370 | Drain Hole Cover |
|
- | |||||
| 3 | 519890 | Hole Plug (2) |
|
- | |||||
| 4 | 842339 | Grommet |
|
- | |||||
| 5 | 848445 | Grommet |
|
- | |||||
| 6 | 652581 | Shelf Stud (2) |
|
- | |||||
| 7 | 942219 | Shelf Stud (6) |
|
- | |||||
| 8 | 523263 | Shelf, Stud R.s. (2) |
|
- | |||||
| 9 | 523264 | Shelf, Stud L.s. (3) |
|
- | |||||
| 10 | 836374 | Retainer, Stud (4) |
|
- | |||||
| 11 | 539760 | Insulator, Spacer (8) |
|
- | |||||
| 12 | 836040 | Insulator, Spacer (2) |
|
- | |||||
| 13 | WP488163 | Screw, 8 X 13/16 (8) (Replaces: 488208) |
|
$ 6.79 | |||||
| 14 | 942203 | Shelf Wire (2) |
|
- | |||||
| 15 | 942204 | Pan, Shelf Wire |
|
- | |||||
| 16 | 836448 | Pan, Cover |
|
- | |||||
| 17 | 942218 | Trivet |
|
- | |||||
| 18 | 942205 | Pan, Plastic |
|
- | |||||
| 19 | WP841180A | Ice Tray (2) (Replaces: 841180) |
|
Immediately | $ 41.00 | ||||
| 20 | 836474 | Fan, Motor Cover |
|
- | |||||
| 21 | 836475 | Gasket, Fan Cover |
|
- | |||||
| 22 | 482731 | Motor, Fan (Replaces: 548697) |
|
Immediately | $ 71.15 | ||||
| 23 | WP1100938 | Blade, Fan (Replaces: 548041) |
|
$ 79.08 | |||||
| 24 | 00487887 | Screw, 3-48 X 1/4 (2) (Replaces: 487887) |
|
$ 220.32 | |||||
| 25 | W11624204 | Screw, 8 X 1/2 (2) (Replaces: 486194) |
|
$ 12.62 | |||||
| 26 | 935068 | Gasket, Sealing |
|
- | |||||
| 27 | 935067 | Scroll, Fan |
|
- | |||||
| 28 | 986628 | Cover, Evaporator |
|
- | |||||
| 29 | 981749 | Gasket, Evaporator |
|
- | |||||
| 30 | WP488729 | Screw, 8-15 X 1/2 (6) (Replaces: 488992) |
|
Immediately | $ 7.01 | ||||
| 31 | 659776 | Hole, Plug |
|
- |
