SELECT A DIAGRAM

01 - Cabinet (den204kv)

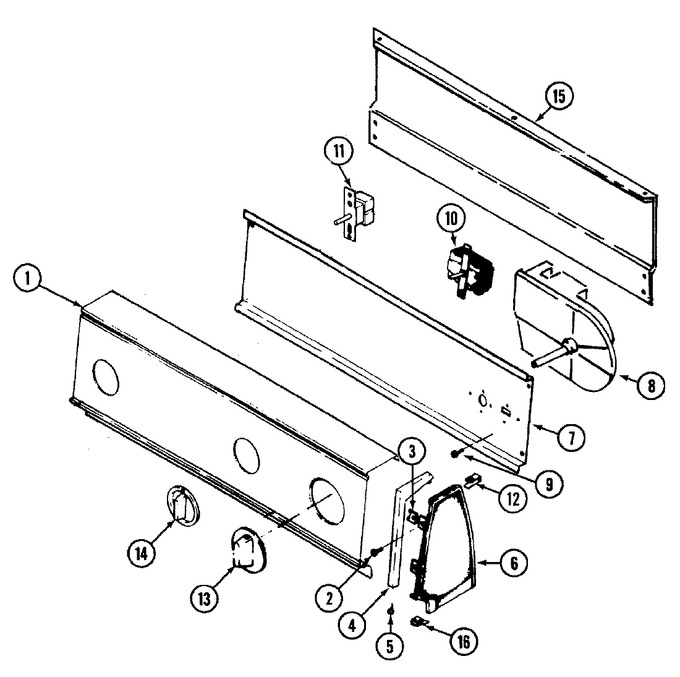

02 - Control Panel (den204kv)


03 - Door (den204kv)


04 - Heater (den204kv)


05 - Motor & Drive (den204kv)


06 - Tumbler (den204kv)


07 - Wiring Information (den204kv)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001012		Panel, Control	10	Appelez-nous	-
1	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
2	25-7793		Screw	10	Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
4	53-0277		Trim, End Cap (rt)	10	Appelez-nous	-
4	53-0278		Trim, End Cap (lt)	10	Appelez-nous	-
5	25-7760		Screw	10	Appelez-nous	-
6	35-2669		Cap, End (lt)(wht)	10	Appelez-nous	-
6	35-2668		Cap, End (rt)(wht)	10	Appelez-nous	-
7	53-2504		Spacer, Control Shield	10	Appelez-nous	-
7	31001128		Shield, Control	11	Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
7	53-1676		Shield, Control	10	Appelez-nous	-
8	31001027		Timer	10	Appelez-nous	-
8	31001069		Resistor Assy.	10	Appelez-nous	-
9	WP33002917		Screw   (Replaces: 25-7435)	10		Immediately	$ 6.90
10	31001129		Switch, Temperature	11	Appelez-nous	-
10	53-0344		Switch, Temperature	10	Appelez-nous	-
11	53-0346		Switch, Wrinkle Out	10	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	31001190		Switch, Two Position Rotary	11			$ 52.56
12	25-7852		Speedclip, Rr Shld To End Cap	10	Appelez-nous	-
13	53-2638		Knob & Skirt Assy (wht)	10	Appelez-nous	-
14	35-2940		Knob, Selector (wht)	10	Appelez-nous	-
15	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
15	35-2688		Shield, Control Panel (rear)	10	Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
16	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
16	25-2219		Screw	10	Appelez-nous	-
17	31001008		Manual, Use & Care	10	Appelez-nous	-
NI	16002081		Guide, Quick Ref - Norge	10	Appelez-nous	-
NI	31001034		Manual, Use & Care	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
