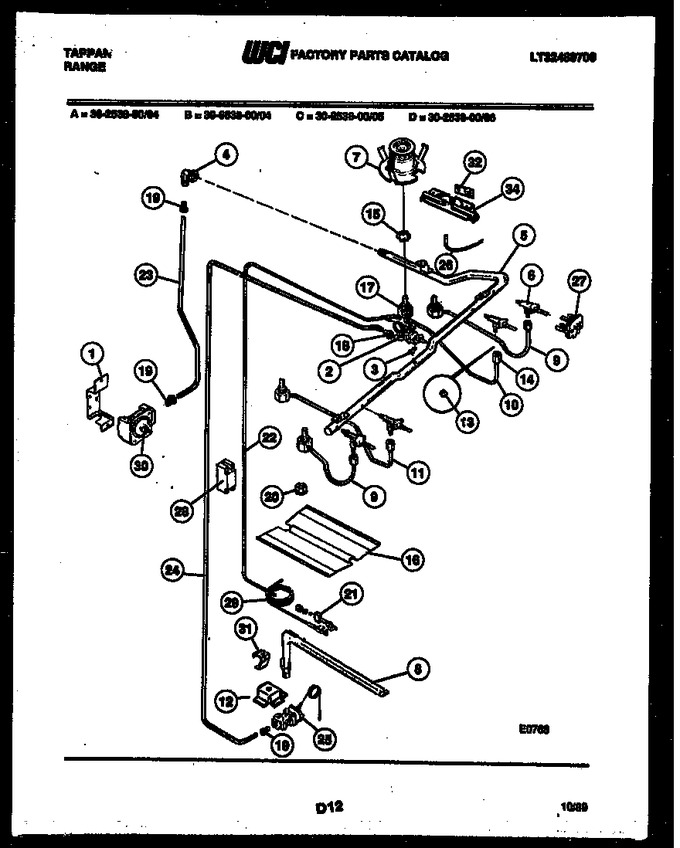

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131110		Bracket, Regulator		Appelez-nous	-
2	3201107		Thermostat		Appelez-nous	-
4	215T013P01		Elbow		Appelez-nous	-
5	3201106		Manifold - Pipe		Appelez-nous	-
6	3017542		Valve - Top 3 Pos. (4)		Appelez-nous	-
7	079T032S02		Burner, Top		Appelez-nous	-
8	3131439		Burner-oven				$ 204.59
9	3131970		Burner-tube (lf Rf)		Appelez-nous	-
10	3011569		Burner-tube (rr)		Appelez-nous	-
11	3011570		Burner-tube (lr)		Appelez-nous	-
12	3131430		Bracket - Valve		Appelez-nous	-
13	247T074P01		Ferrule (4)		Appelez-nous	-
14	3131148		Nut Compression (4)		Appelez-nous	-
15	479T069P40		Nut, Special (4)		Appelez-nous	-
16	3131327		Baffle, Oven		Appelez-nous	-
17	3131404		Fitting, Loxit		Appelez-nous	-
18	3131403		Fitting, Loxit		Appelez-nous	-
19	3131261		Fitting, Loxit		Appelez-nous	-
20	479T069P03		Nut, Baffle		Appelez-nous	-
23	750T085H09		Tube - Alum		Appelez-nous	-
24	3131448		Tube - Alum		Appelez-nous	-
25	3131449		Valve - Safety		Appelez-nous	-
26	3051105		Igniter - Top Burner		Appelez-nous	-
27	3131568		Switch - Igniter		Appelez-nous	-
28	3200669		Spark Module		Appelez-nous	-
29	3131300		Igniter - Electrode		Appelez-nous	-
30	08067923		Control Regulator		Appelez-nous	-
31	072T821F01		Bracket, Oven Burner Support		Appelez-nous	-
32	612T121F01		Retainer Igniter		Appelez-nous	-
33	695T220P01		Oven-igniter Switch		Appelez-nous	-
34	136T355W03		Channel, Flash Tube		Appelez-nous	-
