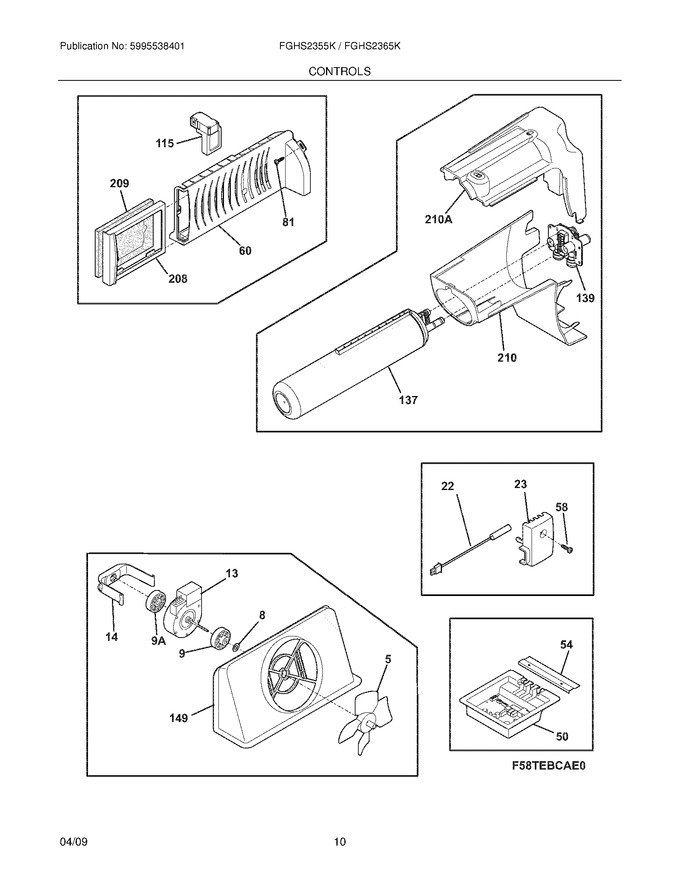

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
9	241563601		Bushing-motor Mtg			Immediately	$ 17.72
13	809069220		Motor,evaporator Fan   (Replaces: 241509402)			Immediately	$ 154.14
14	242135301		Clip,evap Fan Motor   (Replaces: 241517701)				$ 7.79
22	240597220		Sensor   (Replaces: 240597203)			Immediately	$ 5.16
23	241845401		Housing-sensor		Appelez-nous	-
50	5303918498		Board-main Power   (Replaces: 242000406)			Immediately	$ 336.04
54	241532401		Channel				$ 30.47
58	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 14.18
60	242010601		Housing-diffuser & Air Filter				$ 68.46
81	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 14.41
115	241853801		Damper Assy,w/seal				$ 157.35
137	ULTRAWF		Filter-water,carbon   (Replaces: 241791601)			Immediately	$ 109.49
139	242009604		Base-water Filter   (Replaces: 242009601)			Immediately	$ 33.14
149	241563401		Shroud-fan Orfice		Appelez-nous	-
208	241754301		Sleeve,air Filter ,front				$ 38.28
209	PAULTRAC		Filter-air   (Replaces: 241754002)			Immediately	$ 23.62
210	241983812		Housing-water Filtr   (Replaces: 241983801)				$ 79.62
9A	241845301		Bushing-motor Mtg				$ 22.68
F149	241528305		Seal,shroud		Appelez-nous	-
F210	241998303		Mount-water Filter   (Replaces: 241998301)				$ 14.41
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	241852501		Clip,wiring Harness				$ 15.60
NI	241867901		Harness-wiring				$ 170.68
NI	241945101		Insulation-air Duct				$ 19.85
NI	3205266		Edge Protector, Wiring Harness				$ 80.09
