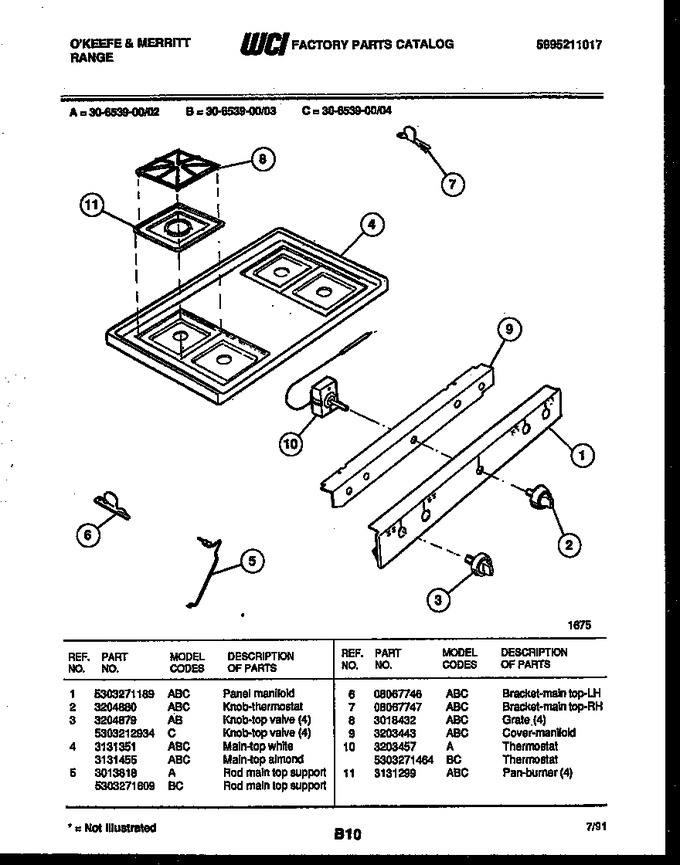

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271189 | Panel-manifold |
|
- | |||||
| 2 | 3204880 | Knob-thermostat |
|
- | |||||
| 3 | 5303212934 | Knob - Top Valve (4) |
|
- | |||||
| 4 | 3131455 | Main Top, Almond |
|
- | |||||
| 4 | 3131351 | Main Top,white |
|
- | |||||
| 5 | 5303271609 | Rod-maintop Support |
|
- | |||||
| 6 | 08067746 | Bracket, Main Top, Lh |
|
- | |||||
| 7 | 08067747 | Bracket, Main Top, Rh |
|
- | |||||
| 8 | 3018432 | Grate (4) |
|
- | |||||
| 9 | 3203443 | Cover-manifold |
|
- | |||||
| 10 | 316032411 | Thermostat (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 11 | 3131299 | Pan-burner (4) |
|
- |
