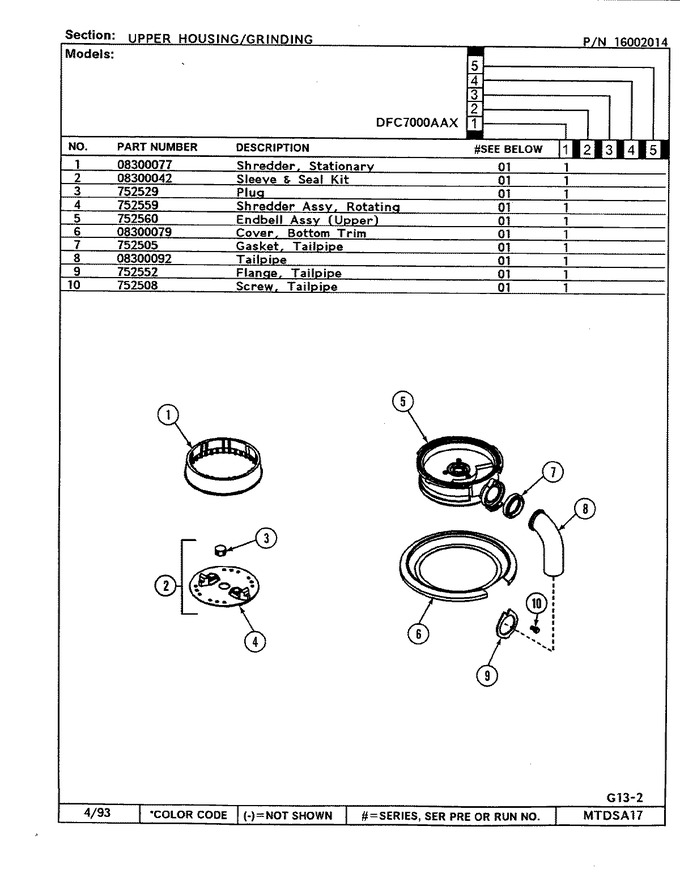

01 - Drain Chamber
02 - Front
03 - Grinding Chamber
04 - Lids
05 - Outer Housing
06 - Sink Flange
07 - Stator & Rotor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 810028 | Bolt-ss-cushion-impeller Pl | A0 |
|
- | ||||
| 2 | 810027 | Retaining Washer Ss-cushion | A0 |
|
- | ||||
| 3 | 810013 | Shredder Ring | A0 |
|
- | ||||
| 4 | 810259 | Cushion For Impeller Arms | A0 |
|
- | ||||
| 5 | 800149 | Undercutter Knives & Rivets | A0 |
|
- | ||||
| 6 | 810003 | Gasket-shredder Ring-drain | A0 |
|
- | ||||
| 7 | 810268 | Gasket For Drain Elbow | A0 |
|
- | ||||
| 8 | 800151 | Drain Elbow With Gasket | A0 |
|
- | ||||
| 9 | 810239 | Screw | A0 |
|
- | ||||
| 10 | 810031 | Mounting Plate-drain Elbow | A0 |
|
- | ||||
| 11 | 810238 | Retainer | A0 |
|
- | ||||
| 12 | Y800234 | Housing & Upper Bearing | A0 |
|
- | ||||
| 13 | Y015629 | Bolt, Grinding Chamber-drai | A0 |
|
- | ||||
| 14 | 911852 | Washer, Lock (brace) | A0 |
|
- | ||||
| 15 | 810014 | Thrust Washer-stainless Stl | A0 |
|
- | ||||
| 16 | 810015 | Oil Slinger, Top-stainless | A0 |
|
- | ||||
| 17 | 810016 | Water Slinger-stainless Stl | A0 |
|
- | ||||
| 18 | 800009 | Boot Seal Complete | A0 |
|
- | ||||
| 19 | Y800002 | Impeller Plate Complete | A0 |
|
- |
