SELECT A DIAGRAM

01 - Drain Chamber

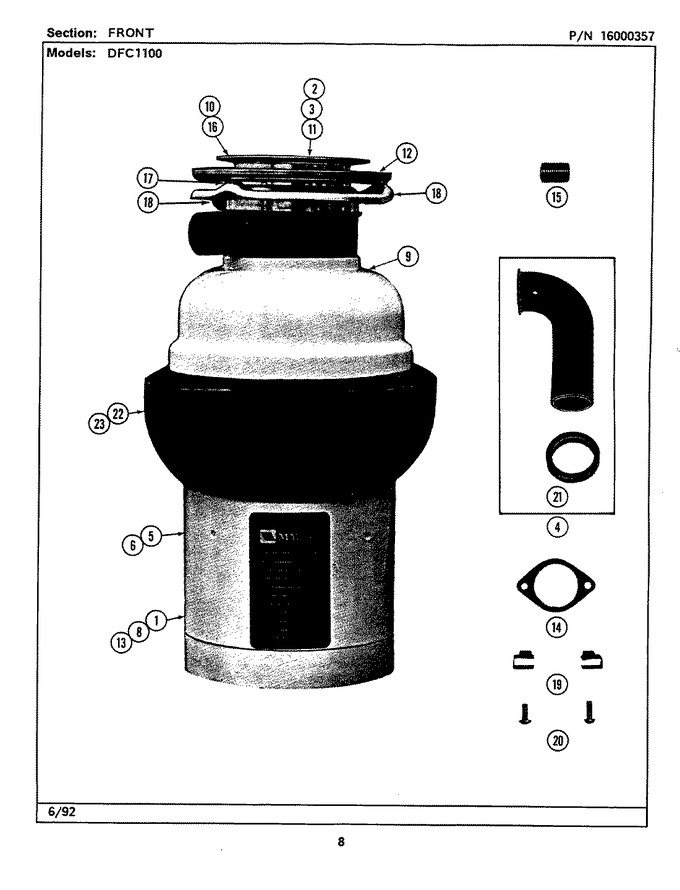

02 - Front


03 - Grinding Chamber


04 - Lids


05 - Sink Flange


06 - Stator & Rotor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	054853		Lock Washer,thru-bolt	A0	Appelez-nous	-
2	Y800031		Splash Shield W/support - F	A0	Appelez-nous	-
3	800033		Lid - Fc	A0	Appelez-nous	-
4	800151		Drain Elbow With Gasket	A0	Appelez-nous	-
5	800199		Stator With Relay	A0	Appelez-nous	-
6	800230		Stator With Relay	A0	Appelez-nous	-
7	Y800234		Housing & Upper Bearing	A0	Appelez-nous	-
8	800236		End Bell Kit	A0	Appelez-nous	-
9	800238		Housing Clamp	A0	Appelez-nous	-
10	810001		Gasket For Sink Flange	A0	Appelez-nous	-
11	810002		Support Ring	A0	Appelez-nous	-
12	810012		Mounting Plate-upper	A0	Appelez-nous	-
13	810022		Thru-bolt-no.10-32 X 6 In	A0	Appelez-nous	-
14	810031		Mounting Plate-drain Elbow	A0	Appelez-nous	-
15	810163		Plug For Housing Liner	A0	Appelez-nous	-
16	810220		Sink Flange	A0	Appelez-nous	-
17	810221		Retaining Ring	A0	Appelez-nous	-
18	810227		Mounting Bolt	A0	Appelez-nous	-
19	810228		Mounting Plate-lower	A0	Appelez-nous	-
20	810238		Retainer	A0	Appelez-nous	-
21	810239		Screw	A0	Appelez-nous	-
22	810268		Gasket For Drain Elbow	A0	Appelez-nous	-
23	810304		Trim Band	A0	Appelez-nous	-
NI	810334		Spring - Retainer	A0	Appelez-nous	-
