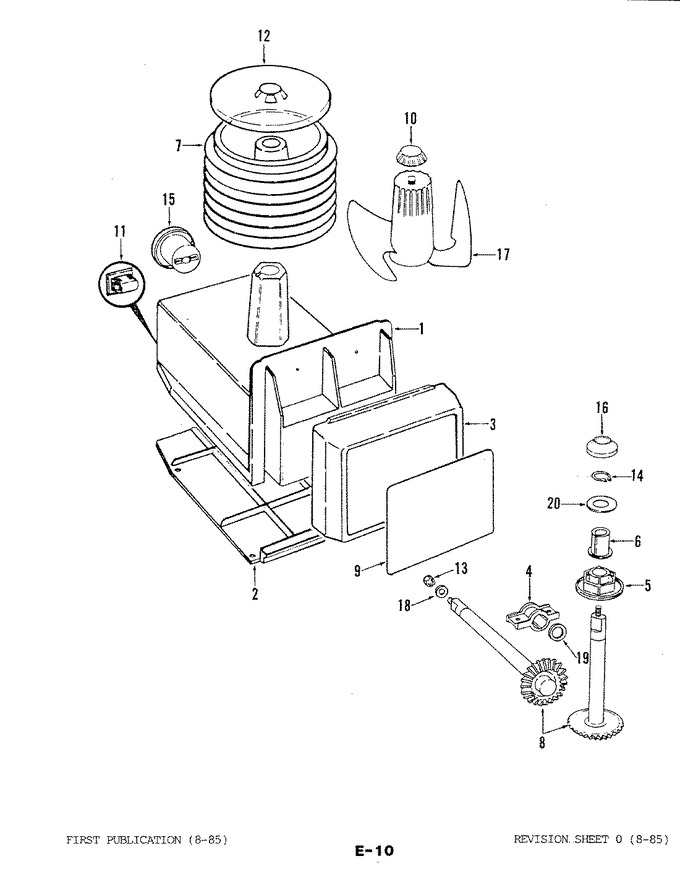

03 - Ice Cream Maker (dicnf17-b/m Ey45a)


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	65125-1		Base Bottom		Appelez-nous	-
3	65126-2		Base Front		Appelez-nous	-
4	65109-1		Bearing Horizontal		Appelez-nous	-
5	65107-1		Bearing, Lower Vertical		Appelez-nous	-
6	65113-1		Bearing, Upper Vertical		Appelez-nous	-
7	65122-1		Cannister		Appelez-nous	-
8	65102-2		Gear & Shaft Assembly		Appelez-nous	-
9	65282-5		Insert		Appelez-nous	-
10	65144-2		Stirrer Knob		Appelez-nous	-
11	65184-2		Latch		Appelez-nous	-
12	65115-1		Cannister Lid		Appelez-nous	-
13	430087-103		Locknut		Appelez-nous	-
14	WP9703438		Retainer   (Replaces: 65100-1)			Immediately	$ 3.81
15	402017-103		Screw		Appelez-nous	-
15	400015-1		Screw		Appelez-nous	-
15	65171-1		Drive Ring		Appelez-nous	-
15	400001-1		Screw		Appelez-nous	-
16	65233-1		Seal		Appelez-nous	-
17	65127-1		Stirrer		Appelez-nous	-
18	65171-1		Drive Ring		Appelez-nous	-
19	54233-3		Spacer		Appelez-nous	-
20	420097-103		Washer		Appelez-nous	-
20	65535-1		Wire Harness		Appelez-nous	-
