SELECT A DIAGRAM

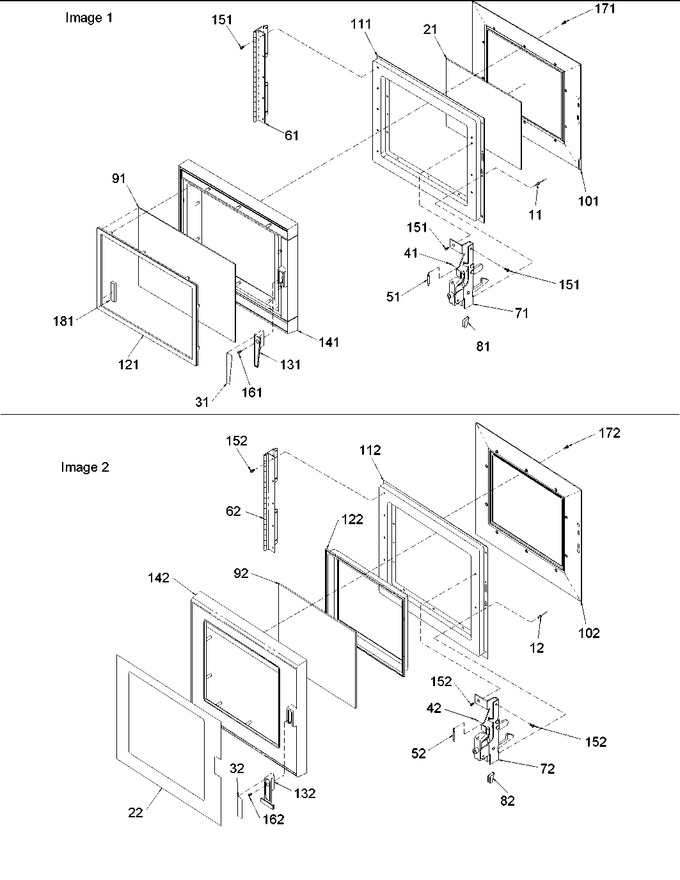

01 - Door Assembly


02 - Internal Components


03 - Outer Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	A4539601		Pop Rivet		Appelez-nous	-
12	A4539601		Pop Rivet		Appelez-nous	-
22	D7738601		Insert Dr		Appelez-nous	-
31	B8378901		Ins Hdl		Appelez-nous	-
41	B8379201		Pin, Latch		Appelez-nous	-
42	B8379201		Pin, Latch		Appelez-nous	-
51	C8893502		Spring, Door Latch		Appelez-nous	-
52	C8893502		Spring, Door Latch		Appelez-nous	-
61	C8936213		Hinge, Door (black)		Appelez-nous	-
62	C8936213		Hinge, Door (black)		Appelez-nous	-
71	R0150122		Latch Assy		Appelez-nous	-
72	R0150122		Latch Assy		Appelez-nous	-
81	C8991301		Pad-latch Assy		Appelez-nous	-
82	C8991301		Pad-latch Assy		Appelez-nous	-
92	C8960401		Window, Outer		Appelez-nous	-
102	D7784901		Inner Door/glass Assy		Appelez-nous	-
111	D7683719		Weldment-inner Door (blk)		Appelez-nous	-
112	D7683719		Weldment-inner Door (blk)		Appelez-nous	-
122	D7731103		Retainer, Lens		Appelez-nous	-
131	D7741501		Handle Front		Appelez-nous	-
151	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
152	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
161	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
162	W11227370		Screw   (Replaces: M0234030)			Immediately	$ 12.78
171	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
172	489392		Screw-``y``drive Headxxx   (Replaces: M0237618)				$ 12.02
181	A3030301		Gasket (inch)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
