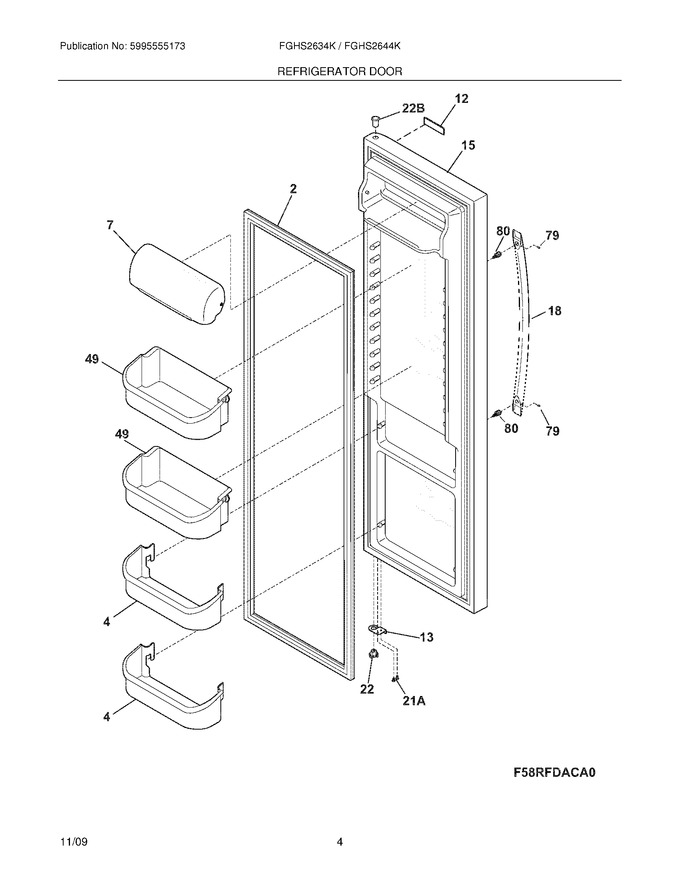

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241786001)				$ 95.90
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
12	242015201		Label-nameplate			Immediately	$ 6.90
13	241942603		Door Stop,black ,ref				$ 20.56
15	241837253		Door-refr,white ,complete Assy		Appelez-nous	-
18	297437820		Handle-door,white   (Replaces: 241930102)				$ 111.99
22	241990301		Bearing-hinge,gray				$ 7.09
49	240356402		Bin-door,gallon			Immediately	$ 106.83
79	218755405		Screw-set,10-32 X 0.650			Immediately	$ 20.56
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
21A	240442708		Screw-no.10-32 X 3/4,zinc   (Replaces: 240442706)				$ 8.34
22B	241760403		Bearing,hinge ,top			Immediately	$ 19.13

    View Diagram in Separate Window       Print Part List
