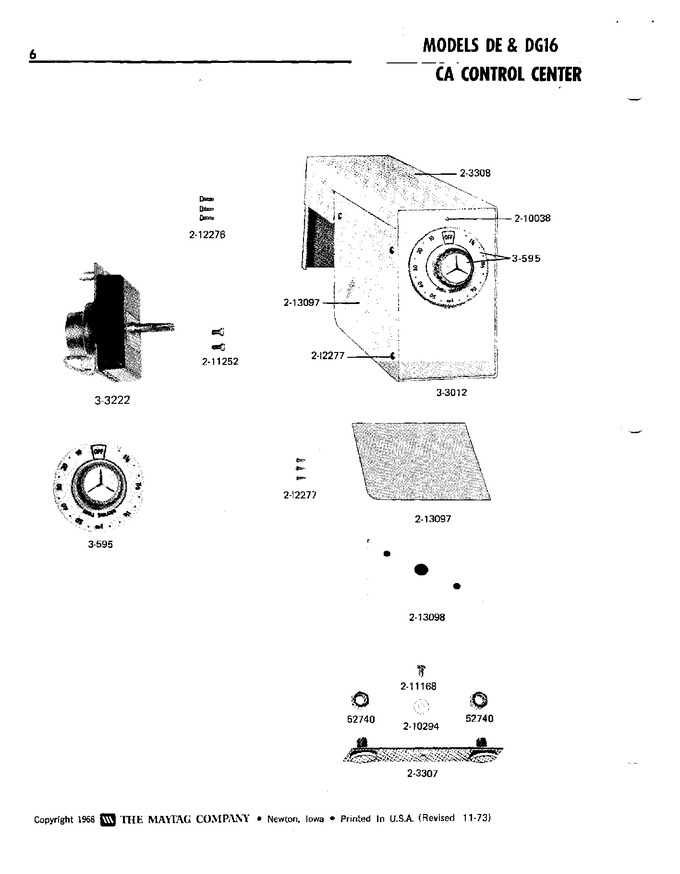

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Knob And Dial | 00 |
|
- | ||||
| 002 | NLA | Control Center-white | 00 |
|
- | ||||
| 003 | Y303222 | Timer Rpr | 00 |
|
- | ||||
| 004 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 005 | NLA | Outer Case-white | 00 |
|
- | ||||
| 006 | NLA | Button Marker | 00 |
|
- | ||||
| 007 | 210294 | Washer | 00 |
|
- | ||||
| 008 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 00 |
|
$ 6.75 | ||||
| 009 | WP489399 | Screw (Replaces: 211252) | 00 |
|
$ 6.26 | ||||
| 010 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 011 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 00 |
|
$ 6.47 | ||||
| 012 | NLA | Access Door For Timer | 00 |
|
- | ||||
| 013 | NLA | Gasket Under Control Center | 00 |
|
- | ||||
| 014 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 |
