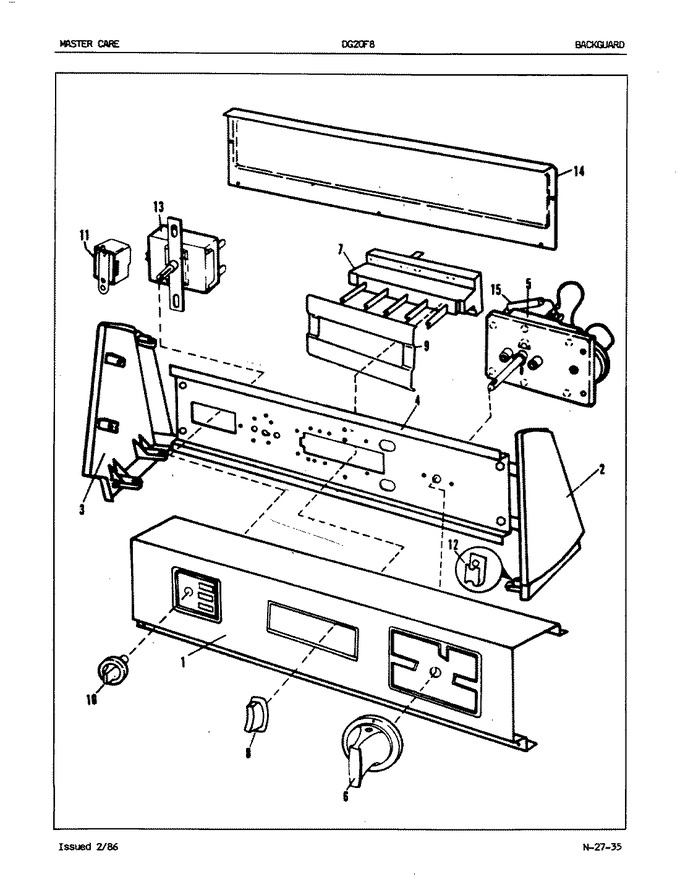

01 - Control Panel (rev. A-h)


02 - Control Panel (rev. J)


03 - Cylinder & Drive (rev. A-h)


04 - Cylinder & Drive (rev. J)


05 - Exterior (rev. A-h)


06 - Gas Carrying


07 - Gas Carrying (rev. A-h)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-0826		Control Panel	J	Appelez-nous	-
1	25-7702		Speedclip, End Cap To Ctrl Pnl	J	Appelez-nous	-
1	25-7793		Screw	J	Appelez-nous	-
2	53-0265		Lh Endcap	J	Appelez-nous	-
3	25-7760		Screw	J	Appelez-nous	-
3	53-0264		Rh Endcap	J	Appelez-nous	-
3	53-0237		Lh Endcap Trim	J	Appelez-nous	-
3	53-0236		Rh Endcap Trim	J	Appelez-nous	-
4	WP90767		Screw   (Replaces: 25-3092)	J		Immediately	$ 7.04
4	25-7702		Speedclip, End Cap To Ctrl Pnl	J	Appelez-nous	-
4	53-0323		Control Shield	J	Appelez-nous	-
5	63-5685		Timer Motor	J	Appelez-nous	-
5	WP489483		Screw   (Replaces: 25-0088)	J			$ 9.78
5	63-6690		Timer	J	Appelez-nous	-
6	53-0470		Timer Knob	J	Appelez-nous	-
6	25-6044		Set Screw	J	Appelez-nous	-
7	53-0459		Pb Switch	J	Appelez-nous	-
8	35-0170		Pushbutton	J	Appelez-nous	-
9	33-6621		Bracket, Switch	J	Appelez-nous	-
9	25-7712		Screw	J	Appelez-nous	-
10	33-0281		Selector Knob	J	Appelez-nous	-
11	63-6731		Buzzer	J	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	J		Immediately	$ 7.04
12	25-7702		Speedclip, End Cap To Ctrl Pnl	J	Appelez-nous	-
13	53-0394		Selector Switch	J	Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)	J		Immediately	$ 7.04
14	25-7851		Speedclip, End Cap To Top	J	Appelez-nous	-
14	WP90767		Screw   (Replaces: 25-3092)	J		Immediately	$ 7.04
14	WP12990527		Screw, Sems   (Replaces: 25-3457)	J		Immediately	$ 7.15
14	WP33002917		Screw   (Replaces: 25-7435)	J		Immediately	$ 6.90
14	25-7697		Screw	J	Appelez-nous	-
14	25-7852		Speedclip, Rr Shld To End Cap	J	Appelez-nous	-
14	34-9487		Plate, Reinforcement	J	Appelez-nous	-
14	53-0268		Rear Shield	J	Appelez-nous	-
