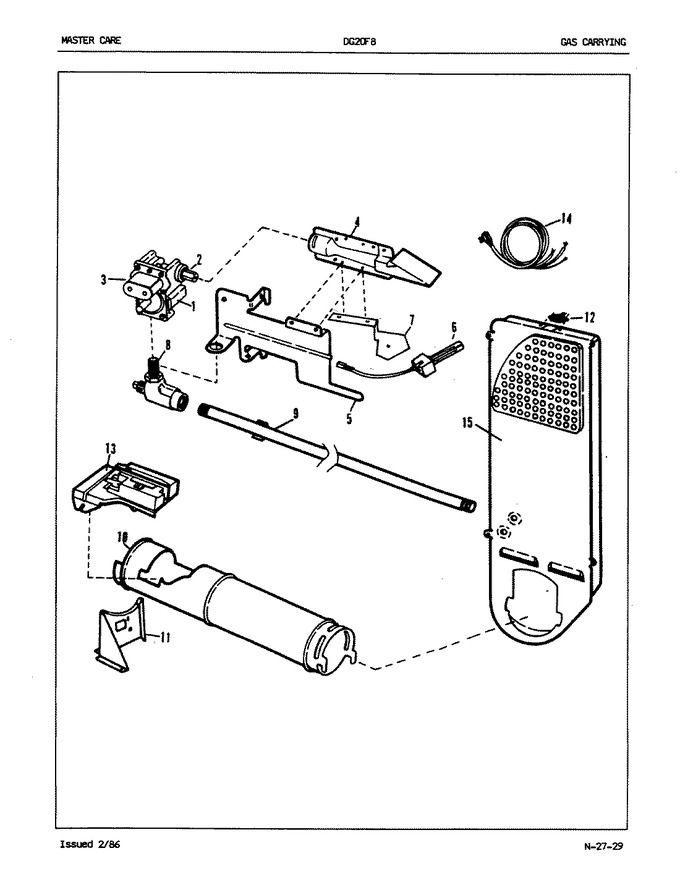

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	53-0194		Gas Control Valve	J	Appelez-nous	-
2	63-3570		Burner Orifice	J			$ 25.76
3	W10124350		Not Required Part Or See Note	J	Appelez-nous	-
3	279834		Dual Coil   (Replaces: 63-6615)	J		Immediately	$ 29.57
3	279834		Secondary Coil   (Replaces: 63-6614)	J		Immediately	$ 29.57
3	WP63-6766		Conversion Kit (nat-lp)   (Replaces: 63-6766)	J			$ 47.57
4	63-6682		Burner Asm	J	Appelez-nous	-
5	53-0140		Mtg Bracket	J	Appelez-nous	-
5	WP90767		Screw   (Replaces: 25-7741)	J		Immediately	$ 7.04
7	WP8281196		Screw   (Replaces: 25-7744)	J		Immediately	$ 6.47
8	53-0101		Shutoff Valve	J	Appelez-nous	-
9	53-0173		Gas Pipe	J	Appelez-nous	-
9	WP90767		Screw   (Replaces: 25-7741)	J		Immediately	$ 7.04
10	53-0138		Heater Housing	J	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-7741)	J		Immediately	$ 7.04
11	53-0139		Heater Support	J	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	J		Immediately	$ 7.04
12	LA-1053		Hi Lmt Tstat   (Replaces: 53-0143)	J		Immediately	$ 51.07
12	25-0168		Screw	J	Appelez-nous	-
13	WP90767		Screw   (Replaces: 25-3092)	J		Immediately	$ 7.04
13	WP90767		Screw   (Replaces: 25-7741)	J		Immediately	$ 7.04
13	WP338906		Sensor   (Replaces: 63-5013)	J		Immediately	$ 46.72
13	WP90767		Screw   (Replaces: 25-2134)	J		Immediately	$ 7.04
14	63-6259		Cord, Power	J	Appelez-nous	-
15	53-0169		Inlet Air Duct	J	Appelez-nous	-
