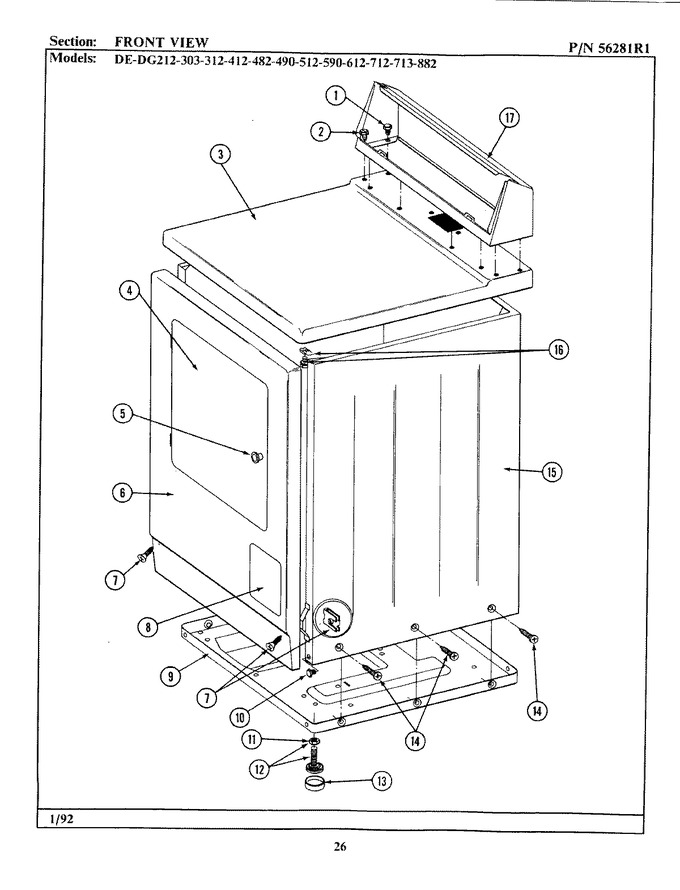

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 211194 | Lock Washer | 00 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 3 | 307104 | Top Cover Assy | 00 |
|
- | ||||
| 4 | Y306668 | Door | 00 |
|
- | ||||
| 5 | 303942 | Knob And Screw | 00 |
|
- | ||||
| 6 | 304594 | Front Panel-white | 00 |
|
- | ||||
| 7 | 204439 | Screw & Fstner Assy(frt.panel) | 00 |
|
$ 8.80 | ||||
| 8 | 302542 | Access Door-white | 00 |
|
- | ||||
| 9 | Y303361 | Base Assy. | 00 |
|
- | ||||
| 10 | Y310632 | Screw | 00 |
|
- | ||||
| 11 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 12 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 00 |
|
$ 7.16 | ||||
| 13 | Y314137 | Foot, Rubber | 00 |
|
$ 14.08 | ||||
| 14 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 15 | 305302 | Cabinet-white | 00 |
|
- | ||||
| 16 | 204445 | Screw & Fastener Asy. | 00 |
|
- | ||||
| 17 | Y305193 | Console (wht) | 00 |
|
- |
