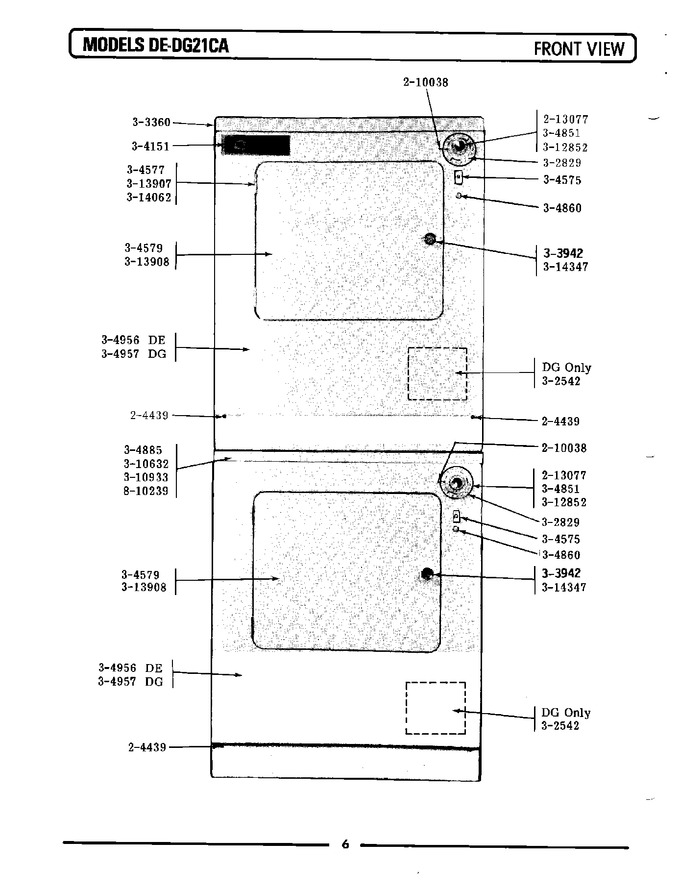

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | 204439 | Screw & Fstner Assy(frt.panel) | 00 |
|
$ 8.80 | ||||
| 002 | NLA | Button Marker | 00 |
|
- | ||||
| 003 | 213077 | Cap For Timer Knob | 00 |
|
- | ||||
| 004 | NLA | Access Door (white) | 00 |
|
- | ||||
| 005 | Y302829 | Timer Dial & Knob | 00 |
|
$ 27.63 | ||||
| 006 | NLA | Top Cover-white | 00 |
|
- | ||||
| 007 | NLA | Name Plate On Control Panel | 00 |
|
- | ||||
| 008 | W10169313 | Door Switch (Replaces: Y304575) | 00 |
|
Immediately | $ 29.18 | |||
| 009 | Y304577 | Door Hinge ----s | 00 |
|
- | ||||
| 010 | Y304579 | Door-white | 00 |
|
- | ||||
| 011 | NLA | Timer----na | 00 |
|
- | ||||
| 012 | 304860 | Indicator Light | 00 |
|
- | ||||
| 013 | NLA | Spacer Assembly | 00 |
|
- | ||||
| 014 | NLA | Front Panel - Dg Models | 00 |
|
- | ||||
| 015 | NLA | Knob And Screw | 00 |
|
- | ||||
| 016 | Y310632 | Screw | 00 |
|
- | ||||
| 017 | 310933 | Fastener | 00 |
|
- | ||||
| 018 | 312852 | Selector Knob-clear Acrylic | 00 |
|
$ 23.60 | ||||
| 019 | Y313907 | Twin Fastener | 00 |
|
- | ||||
| 020 | Y313908 | Door Panel-white | 00 |
|
- | ||||
| 021 | Y314062 | Screw | 00 |
|
$ 12.03 | ||||
| 022 | NLA | Screw For Door Knob----na | 00 |
|
- | ||||
| 023 | NLA | Screw | 00 |
|
- |
