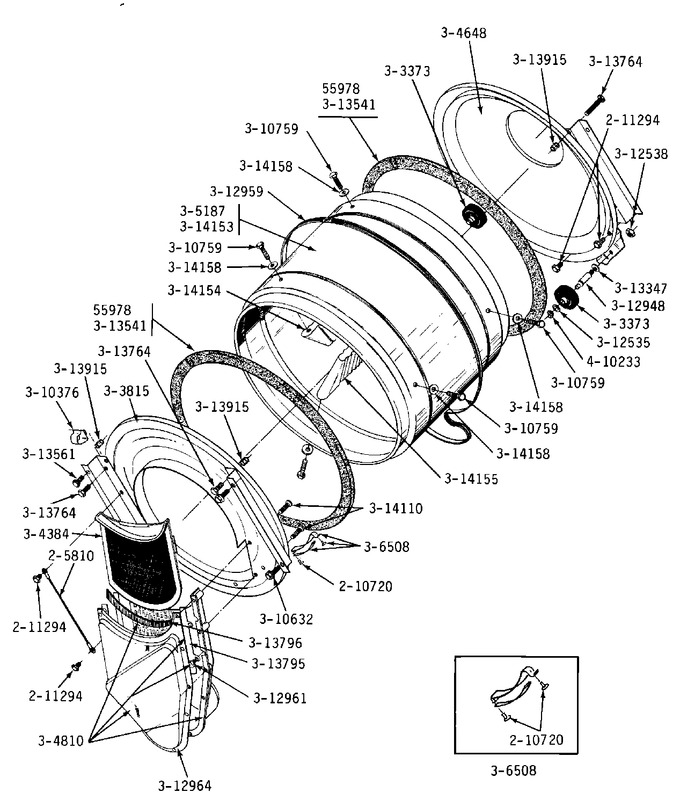

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y055978 | Rubber Adhesive, 2 Oz Tube | 00 |
|
$ 38.40 | ||||
| 002 | 205810 | Wire, Ground | 00 |
|
- | ||||
| 003 | WP210720 | Rivet (Replaces: 210720) | 00 |
|
$ 12.14 | ||||
| 004 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 005 | 12001541 | Bearing & Roller Assembly (Replaces: Y303373) | 00 |
|
Immediately | $ 27.92 | |||
| 006 | Y303815 | Tumbler Front----sub | 00 |
|
- | ||||
| 007 | WP33001003 | Lint Screen---s (Replaces: Y304384) | 00 |
|
Immediately | $ 43.47 | |||
| 008 | Y304648 | Tumbler Back With Seal | 00 |
|
- | ||||
| 009 | Y304648 | Tumbler Back With Seal | 00 |
|
- | ||||
| 010 | Y304810 | Outlet Duct Assembly---s | 00 |
|
- | ||||
| 011 | 305187 | Tumbler | 00 |
|
- | ||||
| 012 | 306508 | Tumbler Bearing Kit ----w | 00 |
|
Immediately | $ 20.77 | |||
| 013 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 014 | Y310632 | Screw | 00 |
|
- | ||||
| 015 | Y310759 | Screw | 00 |
|
$ 5.75 | ||||
| 016 | WP312535 | Washer, Roller Shaft (Replaces: 312535) | 00 |
|
Immediately | $ 10.25 | |||
| 017 | WP33001443 | Nut, Roller Shaft (Replaces: 312538) | 00 |
|
$ 7.15 | ||||
| 018 | Y312948 | Shaft, Tumbler Roller----c | 00 |
|
- | ||||
| 019 | WPY312959 | Belt, Tumbler & Motor (Replaces: Y312959) | 00 |
|
Immediately | $ 30.66 | |||
| 020 | WPW10116751 | Screw (Replaces: Y312961) | 00 |
|
$ 6.74 | ||||
| 021 | Y312964 | Outlet Duct - Outer Half | 00 |
|
- | ||||
| 022 | WP312535 | Washer,spring(roller Shaft)--s (Replaces: Y313347) | 00 |
|
Immediately | $ 10.25 | |||
| 023 | WP33313541 | Tumbler Seal -----s (Replaces: Y313541) | 00 |
|
Immediately | $ 54.49 | |||
| 024 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 025 | NLA | Screw |
|
- | |||||
| 026 | Y313795 | Guide For Lint Screen | 00 |
|
- | ||||
| 027 | Y313796 | Lint Seal | 00 |
|
$ 5.85 | ||||
| 028 | NLA | Cover, Thread | 00 |
|
- | ||||
| 029 | WP3400065 | Screw, Inlet Duct ----s (Replaces: Y314110) | 00 |
|
Immediately | $ 6.97 | |||
| 030 | Y314153 | Tumbler No. | 00 |
|
- | ||||
| 031 | NLA | Tumbler Baffle - Short | 00 |
|
- | ||||
| 032 | 33001004 | Tumbler Baffle - Tall (Replaces: 314155) | 00 |
|
$ 133.20 | ||||
| 033 | 314158 | Washer | 00 |
|
$ 5.48 | ||||
| 034 | WP9703438 | Ring, Retaining (Replaces: 410233) | 00 |
|
Immediately | $ 3.81 |
