SELECT A DIAGRAM

01 - Control Panel


02 - Control Center


03 - Maytag Coin Slide-accessory


04 - Front View


05 - Rear View


06 - Front Panel & Door Assembly


07 - Lint Screen, Tumbler (front & Back)


08 - Motor, Blower, Base Frame & Thermostats


09 - Installation Accessories

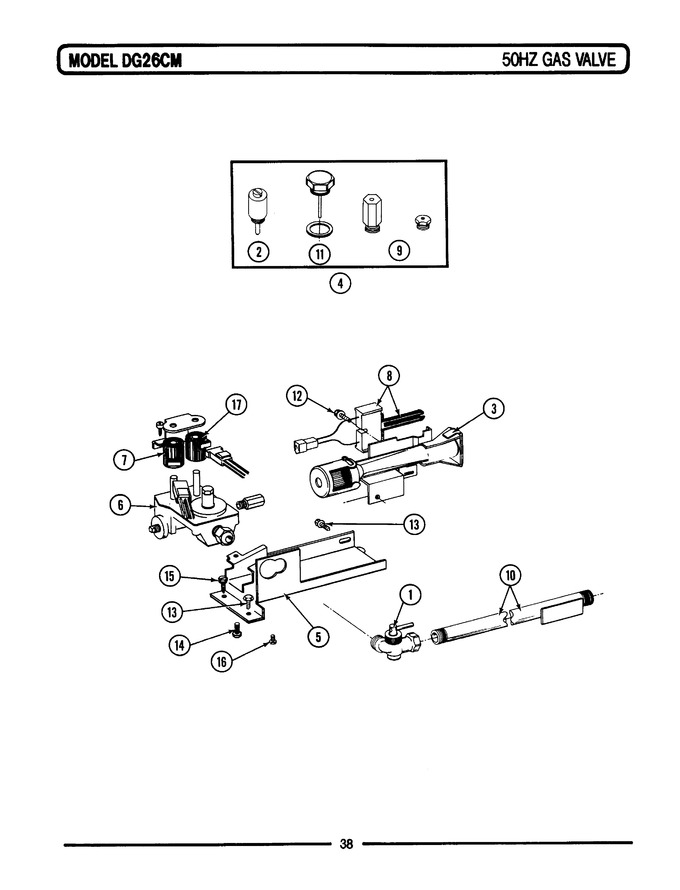

10 - Inlet Duct, Gas Valve, Cone & Extension


11 - 50hz Gas Valve


12 - Conversion List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y303349		Shut-off, Gas Valve	00	Appelez-nous	-
002	306184		Plug, Blocking (lpg Regulator)	00	Appelez-nous	-
003	WP33002793		Burner Assembly   (Replaces: 304974)	00			$ 161.35
004	MAL9000AXX		Conversion Kit (nat.to Lp)   (Replaces: Y306195)	00			$ 72.26
005	314566		Bracket, Gas Valve	00	Appelez-nous	-
006	307927		Gas Valve (240v-50hz)	00			$ 215.29
007	WPY307931		Holding, Booster Coil   (Replaces: Y307931)	00			$ 104.11
008	4391996		Igniter, Gas Valve Pilot   (Replaces: 304970)	00		Immediately	$ 42.36
009	NLA		Main Burner Orifice Kit (lp)	00	Appelez-nous	-
010	Y303383		Pipe & Bracket Assy.	00	Appelez-nous	-
011	NLA		Screw Assy - Blue Block Ope	00	Appelez-nous	-
012	304971		Screw	00	Appelez-nous	-
013	Y310632		Screw	00	Appelez-nous	-
014	WP90767		Screw   (Replaces: Y313559)	00		Immediately	$ 7.04
015	Y313561		Screw----na	00			$ 5.27
016	WP90767		Screw   (Replaces: 314082)	00		Immediately	$ 7.04
017	WP307930		Secondary Coil   (Replaces: 307930)	00			$ 95.14

    View Diagram in Separate Window       Print Part List
