SELECT A DIAGRAM

01 - Front View - Ct Models


02 - Rear View - Cd/ct Models


03 - Control Panel-ct Models


04 - Control Center - Ct Models


05 - Control Center Components - Ct Models

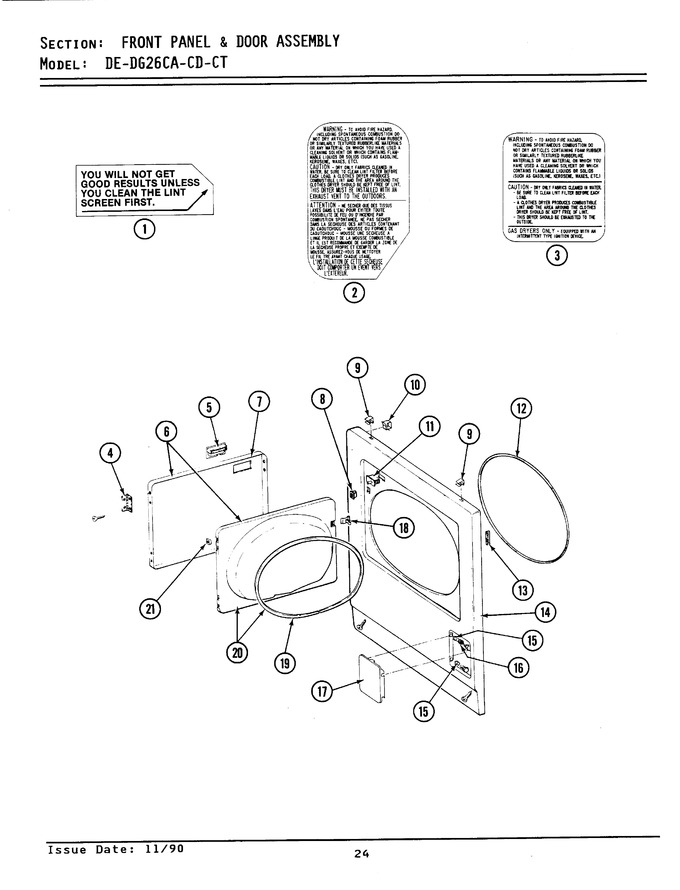

06 - Front Panel & Door Assembly


07 - Lint Screen, Tumbler (front & Back)


08 - Inlet Duct, Gas Valve & Combustion Cone


09 - Motor, Blower & Base Frame


10 - Thermostats


11 - Installation Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y313340		Label, Lint Screen Instr.		Appelez-nous	-
002	314941		Label, Instruction		Appelez-nous	-
003	NLA		Instruction Label		Appelez-nous	-
004	307099		Hinge		Appelez-nous	-
004	Y314062		Screw				$ 12.03
005	W11233072		Screw - Inlet Duct   (Replaces: 312960)			Immediately	$ 12.62
005	314946		Handle White (wht)		Appelez-nous	-
005	314972		(alm)		Appelez-nous	-
005	NLA		(h. Wheat)		Appelez-nous	-
006	NLA		(alm)		Appelez-nous	-
006	Y307111		Door Assy. Complete (wht)		Appelez-nous	-
007	314966		Panel, Outer (wht)		Appelez-nous	-
007	NLA		(alm)		Appelez-nous	-
008	306436		Door Latch Kit--w			Immediately	$ 10.17
009	WP22001650		Fastener, Panel   (Replaces: 212982)			Immediately	$ 7.34
010	Y310376		Clip, Wire Harness		Appelez-nous	-
011	W10169313		Switch, Door   (Replaces: Y305753)			Immediately	$ 29.18
012	314937		Seal, Front Panel				$ 5.00
013	Y313907		Twin Fastener		Appelez-nous	-
014	204439		Screw & Fstner Assy (ft. Pnl)				$ 8.80
014	307998L		(alm)		Appelez-nous	-
014	NLA		Front Panel (wht)		Appelez-nous	-
015	212949		Screw, Bushings		Appelez-nous	-
015	NLA		Bushing, Access Door		Appelez-nous	-
016	312369		Sleeve, Access Door Rubber		Appelez-nous	-
017	NLA		Access Door (wht)		Appelez-nous	-
018	WP33001305		Door Strike   (Replaces: 314936)				$ 2.31
018	WP33001305		Strike Plate   (Replaces: 314944)				$ 2.31
019	314935		Door Seal		Appelez-nous	-
020	307098		Door, Inner (w/seal)		Appelez-nous	-
021	Y313910		Clip, Door Liner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
