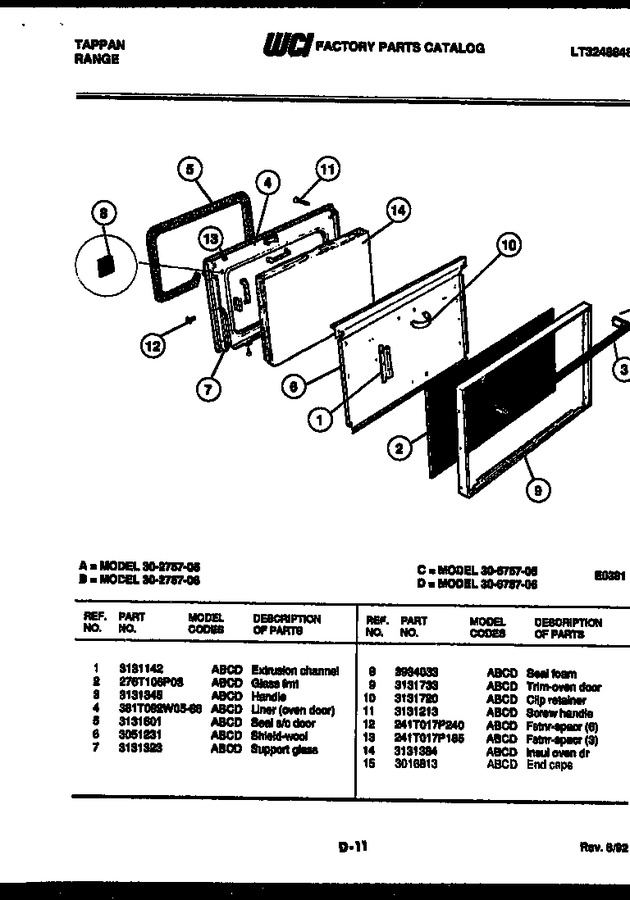

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131142 | Extrusion Channel |
|
- | |||||
| 2 | 276T106P03 | Glass Frnt |
|
- | |||||
| 3 | 3131345 | Handle |
|
- | |||||
| 4 | 381T092W05-86 | Liner, Oven Door |
|
- | |||||
| 5 | 3131601 | Seal S/c Door |
|
- | |||||
| 6 | 3051231 | Shield, Wool |
|
- | |||||
| 7 | 3131323 | Support, Glass |
|
- | |||||
| 8 | 3934033 | Seal, Foam |
|
- | |||||
| 9 | 3131733 | Trim-oven Door |
|
- | |||||
| 10 | 3131720 | Clip, Retainer |
|
- | |||||
| 11 | 3131213 | Screw-handle |
|
- | |||||
| 12 | 241T017P240 | Fstnr-spacr (6) |
|
- | |||||
| 13 | 241T017P185 | Fstnr-spacr (3) |
|
- | |||||
| 14 | 3131384 | Insul. Oven Dr. |
|
- | |||||
| 15 | 3016813 | End Caps |
|
- |
