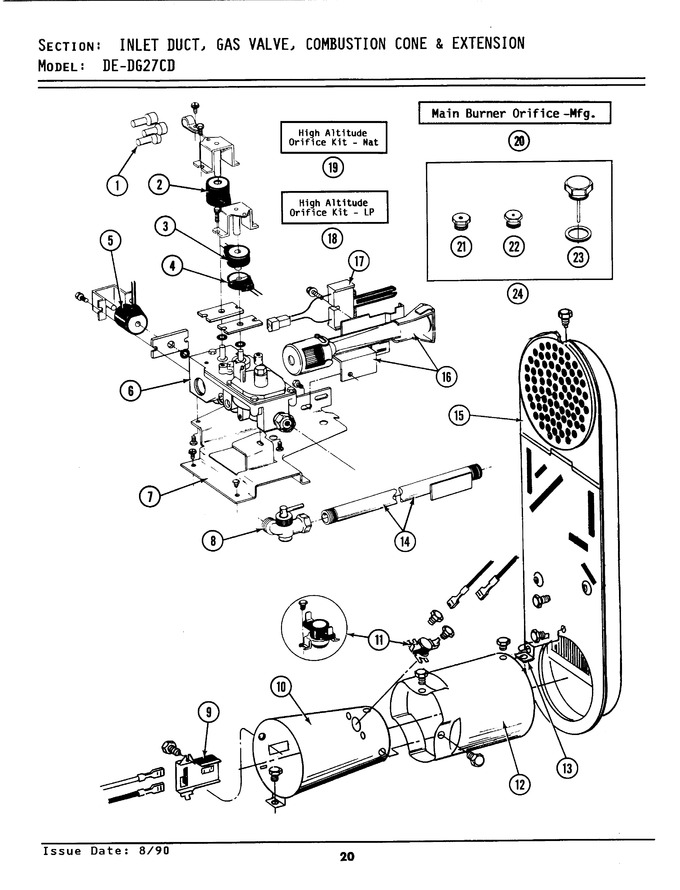

DG27CD | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Series	Availability	Ships	Price
001	311546	Closed Connector		Appelez-nous	-
002	305603	Secondary Coil		Appelez-nous	-
003	305604	Holding Coil				$ 57.03
004	WP305605	Booster Coil (Replaces: 305605)				$ 102.82
005	Y304626	Side Coil		Appelez-nous	-
006	NLA	Screw, Hex Hd No.8 X 3/8 Inch		Appelez-nous	-
006	Y303777	Gas Valve Assembly		Appelez-nous	-
007	312929	Gas Valve Bracket		Appelez-nous	-
007	Y313561	Screw----na				$ 5.27
007	Y310632	Screw		Appelez-nous	-
008	Y303349	Shut-off, Gas Valve		Appelez-nous	-
009	WP90767	Screw (Replaces: 211294)			Immediately	$ 7.04
009	WP338906	Sensor, Radiant (Replaces: Y303377)			Immediately	$ 46.72
010	WP90767	Screw (Replaces: 211294)			Immediately	$ 7.04
010	Y303368	Cone, Combustion		Appelez-nous	-
010	Y308548	Cone, Combustion	A5	Appelez-nous	-
011	WP90767	Screw (Replaces: 211294)			Immediately	$ 7.04
011	WP305169	Thermostat, Hi-limit Gas (Replaces: 305169)				$ 117.03
012	Y303841	Cone, Extension (combustion)		Appelez-nous	-
013	WP90767	Screw (Replaces: 211294)			Immediately	$ 7.04
013	Y312890	Retainer, Heater Chamber		Appelez-nous	-
014	Y303383	Pipe & Bracket Assy.		Appelez-nous	-
015	WP90767	Screw (Replaces: 211294)			Immediately	$ 7.04
015	307119	Inlet Duct Assy.		Appelez-nous	-
016	WP33002793	Burner Assembly (Replaces: 304974)				$ 161.35
016	Y310632	Screw		Appelez-nous	-
017	4391996	Igniter Assy, Gas Valve (Replaces: 304970)			Immediately	$ 42.36
017	304971	Screw		Appelez-nous	-
018	NLA	Orifice Kit, Lp (high Alt.)		Appelez-nous	-
019	NLA	Orifice Kit, Nat (high Alt.)		Appelez-nous	-
020	NLA	Main Burner Orifice (mfg)		Appelez-nous	-
021	NLA	Main Burner Orifice - Lpg		Appelez-nous	-
022	NLA	Internal Orifice - Lpg		Appelez-nous	-
023	NLA	Screw Assm - Blue Block Ope		Appelez-nous	-
024	Y303779	Conversion Kit-nat. To Lpg		Appelez-nous	-
