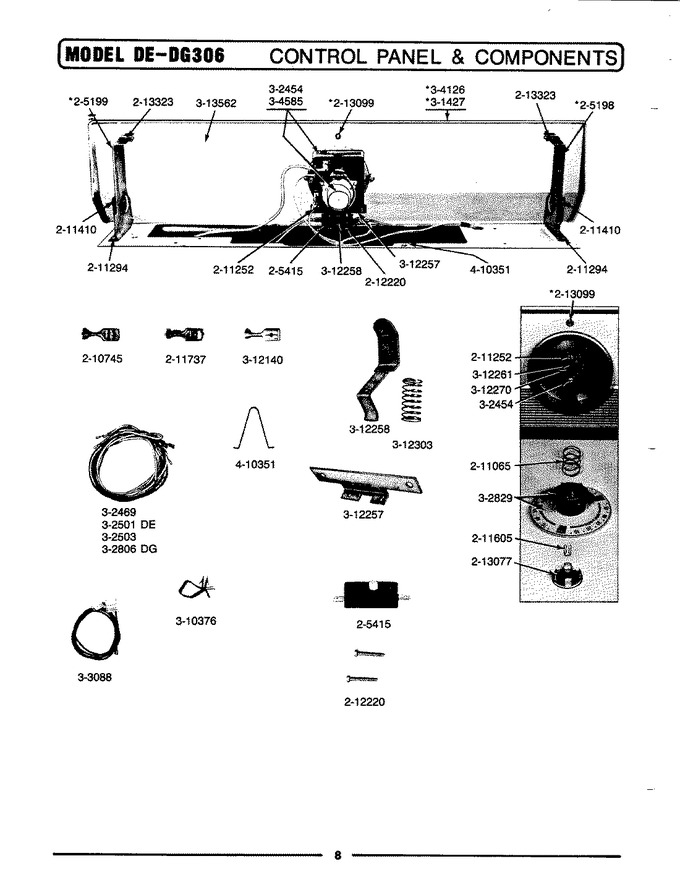

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 205198 | Bracket Kit - Left Hand | 00 |
|
- | ||||
| 2 | 205199 | Bracket Kit - Right Hand | 00 |
|
- | ||||
| 3 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 00 |
|
Immediately | $ 27.45 | |||
| 4 | 210745 | Wire Terminal | 00 |
|
- | ||||
| 5 | 211065 | Spring, Timer Knob | 00 |
|
$ 5.70 | ||||
| 6 | WP489399 | Screw (Replaces: 211252) | 00 |
|
$ 6.26 | ||||
| 7 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 8 | 211410 | Screw, Hex Hd No.8 X 3/8 Inch | 00 |
|
$ 6.64 | ||||
| 9 | 211605 | Retainer, Timer Knob | 00 |
|
- | ||||
| 10 | WP248562 | Wire Connector (Replaces: 211737) | 00 |
|
$ 6.95 | ||||
| 11 | 212220 | Screw-hex Hd Type B No.6 X 15/16 | 00 |
|
- | ||||
| 12 | 213077 | Cap For Timer Knob | 00 |
|
- | ||||
| 13 | 213099 | Lens For Control Panel | 00 |
|
- | ||||
| 14 | 213323 | Fastener, Exhaust Duct Kit | 00 |
|
- | ||||
| 15 | Y302454 | Timer | 00 |
|
- | ||||
| 16 | 302469 | Harness For Shroud | 00 |
|
- | ||||
| 17 | 302501 | Harness | 00 |
|
- | ||||
| 18 | 302503 | Harness | 00 |
|
- | ||||
| 19 | 302806 | Wire Harness | 00 |
|
- | ||||
| 20 | Y302829 | Timer Dial & Knob | 00 |
|
$ 27.63 | ||||
| 21 | 303088 | Gas Valve Wires With Plug | 00 |
|
- | ||||
| 22 | 304126 | Control Panel, Sea-mist | 00 |
|
- | ||||
| 23 | 304127 | Control Panel Kit, Sea-mist | 00 |
|
- | ||||
| 24 | Y304585 | Timer Motor Rpr | 00 |
|
- | ||||
| 25 | Y310376 | Clip, Wire Harness | 00 |
|
- | ||||
| 26 | Y312140 | Wire Connector | 00 |
|
- | ||||
| 27 | 312257 | Bracket | 00 |
|
- | ||||
| 28 | 312258 | Actuator | 00 |
|
- | ||||
| 29 | 312261 | Washer | 00 |
|
- | ||||
| 30 | Y312270 | E Clip | 00 |
|
- | ||||
| 31 | 312303 | Spring | 00 |
|
- | ||||
| 32 | 313562 | Back-up Plate | 00 |
|
- | ||||
| 33 | 410351 | Harness Retainer | 00 |
|
- |
