Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10139210 Screw, No.8 X 5/16 Inch   (Replaces: 211168) Special Order $ 6.75

2 WP90767 Screw   (Replaces: 211294) In-Stock Immediately $ 7.04

3 213063 Palnut For Bleach Reservoir Appelez-nous -
4 213077 Cap For Timer Knob Appelez-nous -
5 213322 Maytag Decal Appelez-nous -
6 213323 Fastener, Exhaust Duct Kit Appelez-nous -
7 00214468 Bracket-left Hand   (Replaces: 214468) Special Order $ 67.91

8 214469 Bracket-right Hand Appelez-nous -
9 303360 Top Cover-white Appelez-nous -
10 303360A Top Cover-dark Avocado Appelez-nous -
11 303360B Top Cover-dark Coppertone Appelez-nous -
12 303360G Top Cover-dark Gold Appelez-nous -
13 303360L Top Cover-almond Appelez-nous -
14 303360M Top Cover-harvest Wheat Appelez-nous -
15 303360N Top Cover-fresh Avocado Appelez-nous -
16 304078 Timer Dial, Sun-glow Appelez-nous -
17 Y304104 Buzzer Appelez-nous -
18 304105 Buzzer Harness Appelez-nous -
19 304125 Control Panel, Sun-glow Appelez-nous -
20 Y304585 Timer Motor Rpr Appelez-nous -
21 Y304585 Timer Motor Rpr Appelez-nous -
22 Y305020 Timer Motor   (Replaces: 304646) Appelez-nous -
23 Y305020 Timer Appelez-nous -
24 305081 Wire Harness Appelez-nous -
25 312243 Control Cover-white Appelez-nous -
26 312243B Control Cover-dk Coppertone Appelez-nous -
27 312243G Control Cover-dark Gold Appelez-nous -
28 312243L Control Cover-almond Appelez-nous -
29 312243M Control Cover-harvest Wheat Appelez-nous -
30 312243N Control Cover-fresh Avocado Appelez-nous -
31 W10155650 Nut   (Replaces: 312273) Special Order $ 12.03

32 312852 Selector Knob-clear Acrylic Special Order $ 23.60

33 WP488234 Screw   (Replaces: Y313588) Special Order $ 6.07

34 313819 Back-up Plate Appelez-nous -
35 410351 Harness Retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

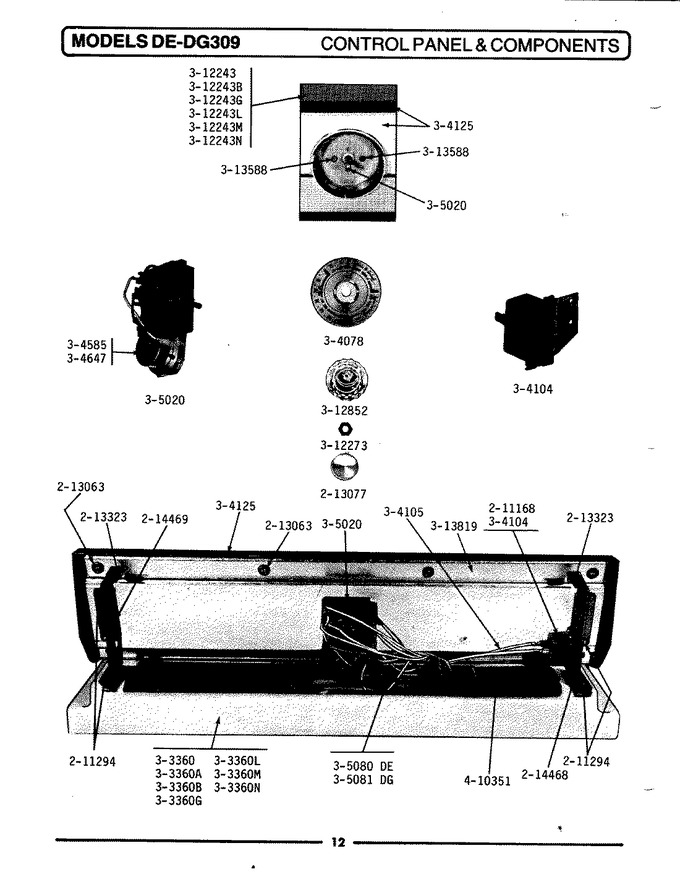

Diagram for DG309
