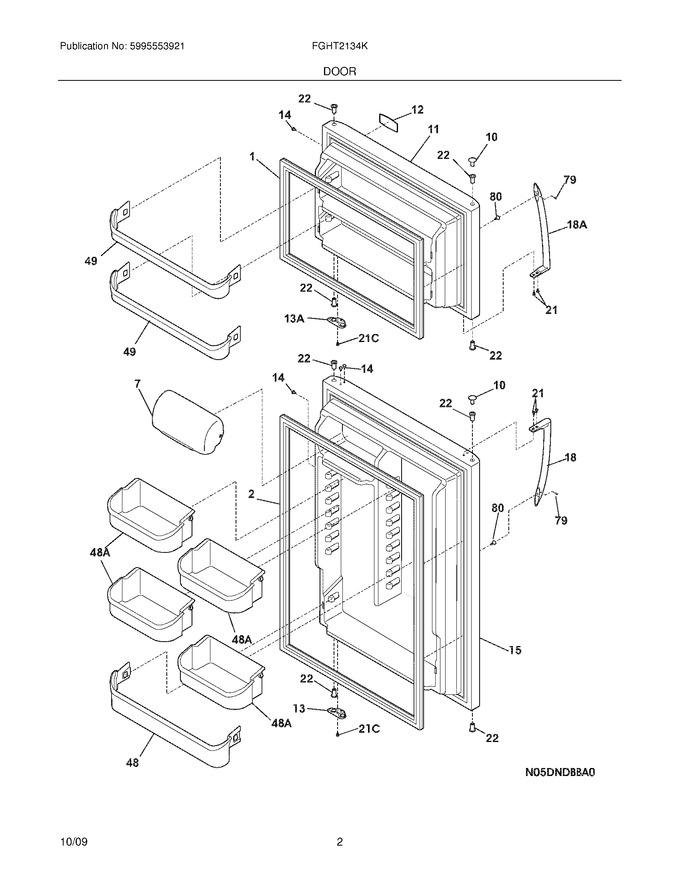

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872505		Gasket-frzr Door,white ,magnetic				$ 162.93
7	240338313		Door,dairy ,clear   (Replaces: 240338303)			Immediately	$ 80.80
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 18.95
11	241798401		Door-frzr,white ,complete Assy				$ 464.55
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 15.17
14	240494001		Plug-button,white			Immediately	$ 18.20
15	241798551		Door-refr,white ,complete Assy				$ 491.35
18	5303918823		Handle-door,white ,refr-rh/frzr-lh   (Replaces: 241977503)			Immediately	$ 52.33
21	240383407		Screw,truss Hd Quad ,no.10-16 X .500 ,white				$ 12.76
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 7.59
48	240338101		Bin-door,pseudo ,bottom			Immediately	$ 52.37
49	240495804		Bin-door,pseudo ,frzr			Immediately	$ 43.29
79	218755402		Screw-set,10-32 X 0.375			Immediately	$ 33.00
80	218755504		Screw-shoulder,no.10 Ab ,handle Mounting			Immediately	$ 18.60
13A	240312414		Door Stop,white ,frzr				$ 19.13
18A	5303918823		Handle-door,white ,refr-lh/frzr-rh   (Replaces: 241977504)			Immediately	$ 52.33
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 14.18
48A	240338201		Bin-door,gallon ,white			Immediately	$ 69.35
F2	242193213		Gasket,refr Door Seal ,white ,magnetic   (Replaces: 241872513)			Immediately	$ 190.22
NI	241701901		Screw Driver		Appelez-nous	-
NI	241601001		Wrench,allen		Appelez-nous	-
