FGI220JN0D | TransGlobal : Appliance Model Lookup

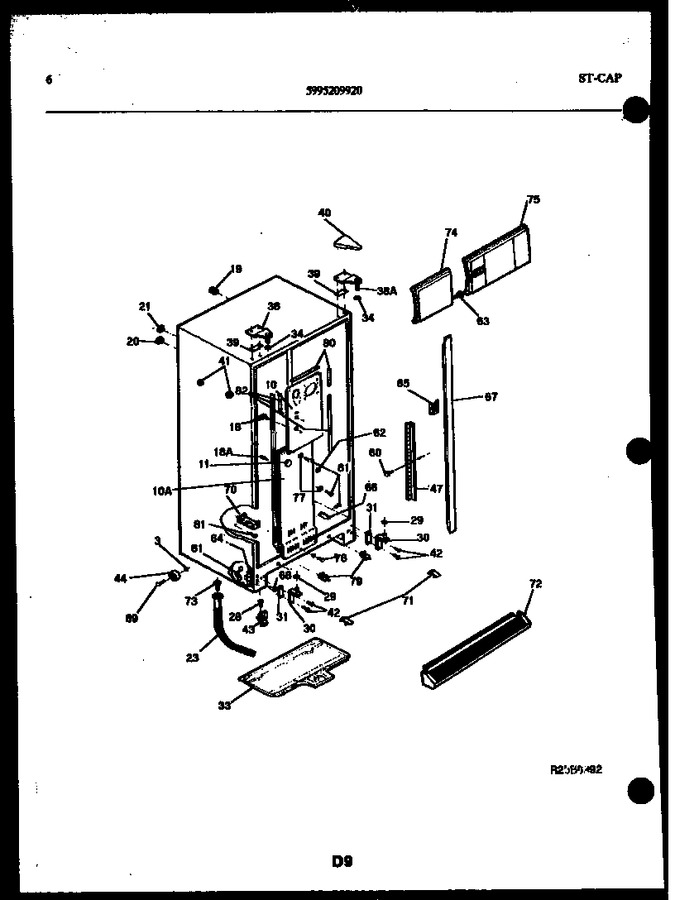

Diagram #	Part Number	Description	Availability	Ships	Price
3	5303001028	Nut, Push	Appelez-nous	-
10	5303006543	Cover-evap Coil, Upper	Appelez-nous	-
11	5303208309	Plug-hole, Factory Test			$ 45.50
18	5308000097	Support, Evap Cover, (2)	Appelez-nous	-
19	5303001198	Tube-rubber	Appelez-nous	-
20	5303001286	Ferrule-inner	Appelez-nous	-
21	5303001287	Ferrule-outer	Appelez-nous	-
23	5303209723	Drain Tube	Appelez-nous	-
28	5308009568	Bolt-roller Adj, Hex Head Mach, 5/16-24 X 3/4, (2)	Appelez-nous	-
29	5303001038	Washer, .28 X .62 X .19, Nylon			$ 13.34
30	5303001271	Bracket-lower Hinge, (2), W/ Hinge Pin			$ 102.38
31	5303001272	Shim-lower Hinge (2)	Appelez-nous	-
33	5303001026	Pan-defrost	Appelez-nous	-
34	5308000186	Washer, .34 X .62 X .10, Nylon		Immediately	$ 6.02
38	5303001062	Bracket-upper Hinge, Lh			$ 117.02
39	5303001037	Shim - Upper Hinge			$ 12.39
40	5308012933	Cover-upper Hinge, Almond	Appelez-nous	-
41	5304509705	Grommet, Shelf Mtg (Replaces: 5303001609)			$ 10.01
42	5303001041	Screw-lwr Hinge Mtg, Rec Hex Head, 1/4(ab) X 1, (4)	Appelez-nous	-
43	5308000118	Roller Assy-front (2)	Appelez-nous	-
44	5303001030	Roller, Rear (2)			$ 17.80
47	5308002744	Channel-shelf Mtg, Side, (2)	Appelez-nous	-
60	5308010253	Screw	Appelez-nous	-
10A	5308000823	Cover-evap Coil, Lower	Appelez-nous	-
10B	5303209814	Nut, ``u`` Type, No. 8(a), Evap Cover, (2) (non-illustrated)	Appelez-nous	-
18A	5303001250	Support-evap Cover, (5)	Appelez-nous	-
23A	5303001558	Clamp-drain Tube	Appelez-nous	-
38A	5308012934	Bracket-upper Hinge, Rh	Appelez-nous	-
38B	241710601	Screw (Replaces: 5303001479)			$ 13.46
38C	5308012296	Tapping Plate, Upper Hinge, (2) (non-illustrated)			$ 47.44
43A	5308017044	Screw-roller Mtg, Spec Ind Hex Hd, 5/16(23) (non-illustrated)			$ 6.34
