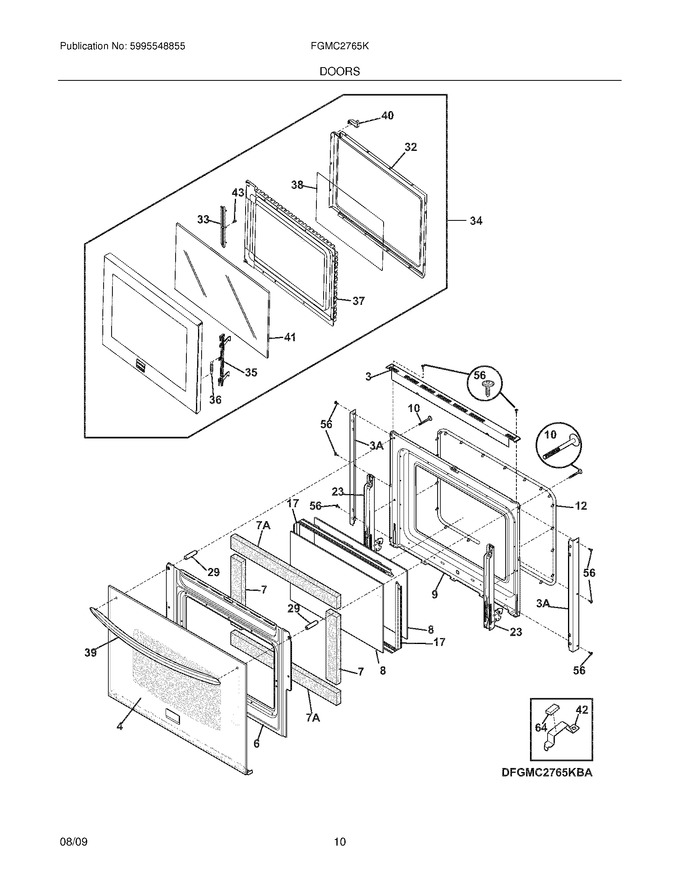

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318260211		Trim,oven Door ,black ,upper		Appelez-nous	-
4	318261327		Glass Assy.,oven Door ,black ,outer ,w/trim & Badge		Appelez-nous	-
6	318260510		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door ,(2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass,oven Door ,heat Barrier				$ 113.17
9	318259652		Liner,oven Door		Appelez-nous	-
10	5304500008		Screw,10-24 X 1.750 ,handle Mtg   (Replaces: 5304416408)				$ 12.13
12	318053126		Gasket,oven Door Seal				$ 75.55
17	318264700		Spacer,glass ,(2)		Appelez-nous	-
23	318567108		Hinge,oven Door ,(2)		Appelez-nous	-
29	318014405		Spacer,door		Appelez-nous	-
32	5304440861		Choke Cover,inner Door				$ 73.02
33	5304440862		Door Stop		Appelez-nous	-
34	5304474854		Door Assembly,complete ,black ,w/badge		Appelez-nous	-
35	5304441893		Latch,door   (Replaces: 5304440856)			Immediately	$ 48.91
36	5304440316		Spring,door Latch			Immediately	$ 61.00
37	5304440857		Panel,inner Door ,black				$ 192.29
38	5304440860		Seal,door ,film				$ 63.09
39	318927501		Handle Assembly,w/spacer ,black				$ 182.02
40	5304442145		Door Stop		Appelez-nous	-
41	5304472854		Panel,door Glass ,black		Appelez-nous	-
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 50.81
43	5304452259		Screw		Appelez-nous	-
56	5304436875		Screw,8-18 X 1/2,black				$ 14.41
64	318165800		Spacer				$ 17.72
3A	318260401		Trim,oven Door ,side ,(2)				$ 51.66
7A	318372001		Insulation,door ,20.5 X 2.375 ,(2)		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
