SELECT A DIAGRAM

01 - Cover


03 - Control Panel


05 - Microwave

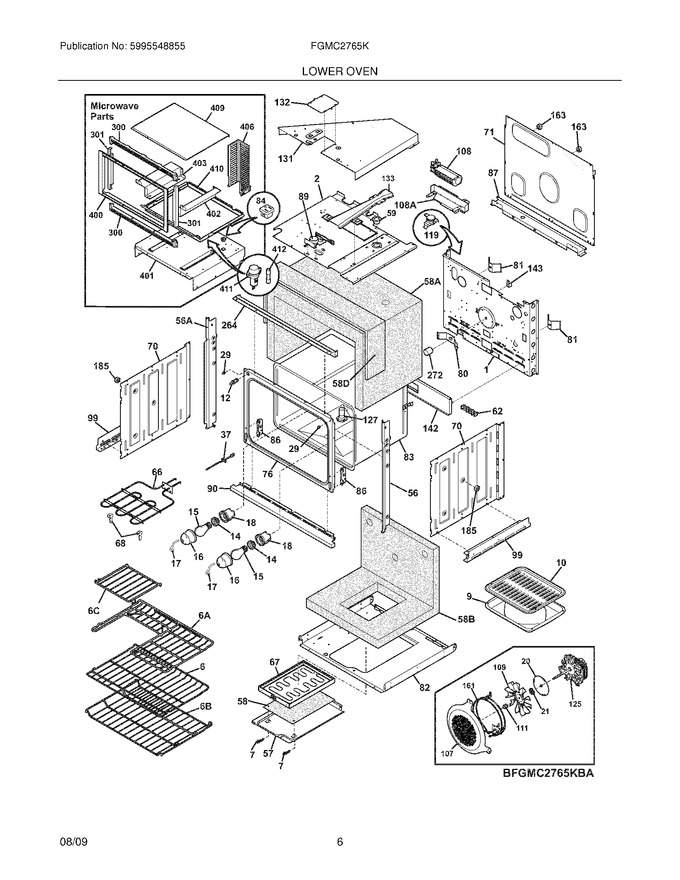

07 - Lower Oven


09 - Doors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259213		Back,main		Appelez-nous	-
2	318258920		Shield,insulation ,upper		Appelez-nous	-
6	318922301		Rack,oven   (Replaces: 318922300)			Immediately	$ 163.05
7	318368300		Pin,locking ,(2)				$ 9.93
9	5303317977		Pan,broileroptional Access0ry		Appelez-nous	-
10	5303317976		Insert,broiler Panoptional Access0ry		Appelez-nous	-
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318222400		Housing,oven Light				$ 58.22
20	318389400		Plate,retainer				$ 16.21
21	318389000		Seal,ring				$ 22.75
25	5304440842		Duct,magnetron		Appelez-nous	-
27	5304472846		Duct,cooling Fan		Appelez-nous	-
29	5304462314		Cover,waveguide				$ 60.17
30	5304440288		Bushing,motor Shaft ,turntable				$ 16.45
32	5304440847		Duct,ah Sensor		Appelez-nous	-
33	5304441910		Cushion,magnetron Pad		Appelez-nous	-
45	5304467717		Support Assy,turntable   (Replaces: 5304440284)				$ 122.18
46	5304529482		Tray,turntable ,glass   (Replaces: 5304440868)				$ 108.44
47	5304440334		Label,caution-monitor		Appelez-nous	-
48	5304440333		Label,caution-dhhs		Appelez-nous	-
49	5303319636		Screw		Appelez-nous	-
50	5303319641		Screw				$ 12.76
51	5304462315		Screw,4 Mm X 12 Mm ,ground		Appelez-nous	-
52	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
53	5304453725		Screw,3mm X 8mm		Appelez-nous	-
54	5304450253		Screw,4 Mm X 8 Mm				$ 14.89
55	5304440873		Screw,torx ,t20h/gtxh20-100				$ 11.34
81	318192400		Spring,oven				$ 312.53
82	318258774		Shield,insulation ,lower		Appelez-nous	-
83	318261810		Liner,oven				$ 209.84
86	318561100		Receptacle,hinge ,(2)				$ 21.23
87	318260623		Bracket,cable Mtg.		Appelez-nous	-
90	318259710		Trim,oven Front ,white ,bottom				$ 121.91
99	318256201		Bracket,side ,bottom ,(2)				$ 56.70
107	318219405		Cover,fan				$ 82.69
109	318398302		Fan Blade   (Replaces: 318398300)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
127	318357001		Adapter Assembly,w/vent Tube ,and Catalyst				$ 50.66
131	318272901		Box,vent				$ 59.01
132	318003000		Plate,shield		Appelez-nous	-
133	318347800		Chimney		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
143	318172904		Support,wire		Appelez-nous	-
163	318531703		Spacer,(4)		Appelez-nous	-
185	318531800		Spacer,oven Shield ,(2)				$ 12.76
264	318257721		Trim,oven ,black ,front				$ 57.33
272	318249409		Tube,protector		Appelez-nous	-
300	318925000		Trim,microwave Frame ,white ,top/bottom		Appelez-nous	-
301	318925102		Trim,microwave Frame ,white ,sides ,(2)		Appelez-nous	-
400	318930305		Frame,microwave ,white		Appelez-nous	-
401	318297206		Plate,support ,microwave ,27``		Appelez-nous	-
402	318276204		Bracket,base Pad ,rh		Appelez-nous	-
403	318276206		Bracket,base Pad ,lh		Appelez-nous	-
406	318277201		Shield,microwave Rear		Appelez-nous	-
409	318295301		Bracket,top Trim				$ 113.61
410	318297111		Flue,black				$ 165.17
6A	318926804		Rack,half ,oven		Appelez-nous	-
6B	318919800		Rack,oven				$ 168.26
6C	318929703		Insert,half Rack		Appelez-nous	-
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F119	318004900		Switch,thermal				$ 60.25
F125	5304463302		Motor,fan   (Replaces: 318398200)			Immediately	$ 259.95
F125	318142100		Washer,motor ,convection				$ 12.39
F161	318255504		Element,convection ,350 W				$ 97.07
F26	5304440843		Fan Blade,cooling Fan				$ 37.75
F28	5304492543		Filter,noise ,electronic   (Replaces: 5304467698)				$ 81.18
F31	5304440870		Wire,high Voltage-a		Appelez-nous	-
F411	5304442354		Holder,fuse		Appelez-nous	-
F412	5304442353		Fuse,20 Amp		Appelez-nous	-
F44	5304452260		Wiring Harness,main		Appelez-nous	-
F84	318146833		Outlet-electrical,miniature ,black-glossy				$ 106.26
F89	318261229		Motor,latch Assy   (Replaces: 318261215)			Immediately	$ 93.62
FNI	318532182		Harness,wiring ,main				$ 107.04
FNI	318402209		Wiring Harness,main ,latch		Appelez-nous	-
FNI	5304506984		Box & Wires Assy   (Replaces: 318394442)				$ 150.17
NI	5303323136		Screw-ground		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	240442708		Screw,10-32 X 3/4 ,(4)   (Replaces: 5304400794)				$ 8.34
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5303324184		Screw,8-18 X 5/16 ,black ,(4)			Immediately	$ 14.18
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318368501		Seal,housing ,flat Washer		Appelez-nous	-
NI	318268099		Insulation,oven Light		Appelez-nous	-
NI	5303307406		Screw,6-32 X 3/8 ,black ,(2)				$ 11.29
NI	5303308450		Screw,8 X 0.375 ,(10)		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5304461333		Screw,10-32 X 17/32			Immediately	$ 13.46
NI	5304453707		Screw,8-18 X 1/2			Immediately	$ 15.92
NI	318165800		Spacer				$ 17.72

    View Diagram in Separate Window       Print Part List
