SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

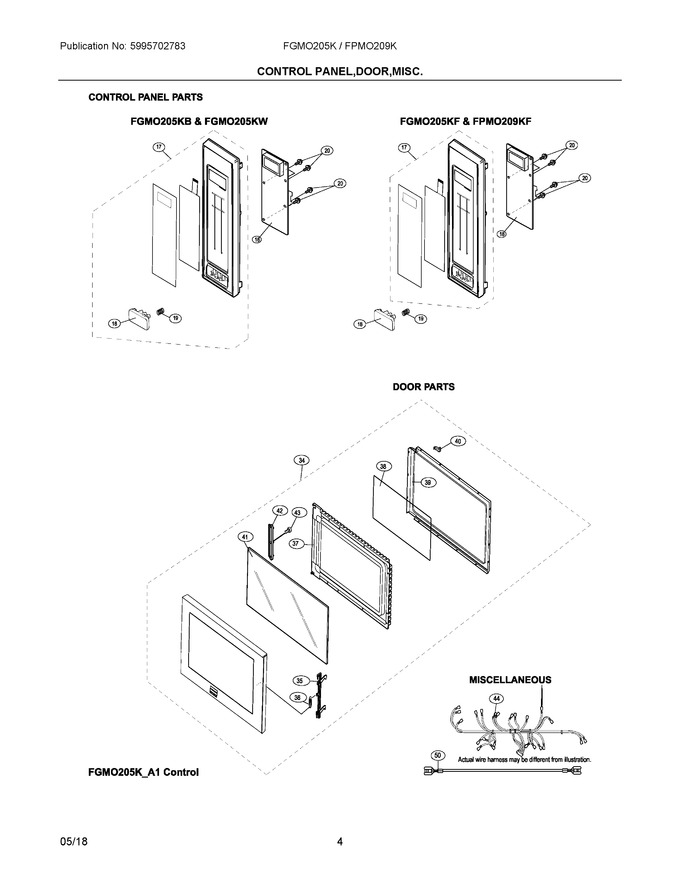

03 - Control Panel, Door, Misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	5304472840		Control Board, Printed Circuit				$ 418.58
17	5304516278		Control Panel, Assembly, Black, W/button-ovrly		Appelez-nous	-
18	5304440827		Push Button, Door, Black		Appelez-nous	-
19	5304440831		Spring, Door Button				$ 20.29
20	5304456930		Screw, 3 Mm X 10 Mm		Appelez-nous	-
34	5304472850		Door Assy, Complete, Black		Appelez-nous	-
35	5304441893		Latch, Door			Immediately	$ 48.91
36	5304440316		Spring, Door Latch			Immediately	$ 61.00
37	5304440857		Panel, Inner Door, Black				$ 192.29
38	5304440860		Seal, Door, Film				$ 63.09
39	5304440861		Choke Cover, Inner Door				$ 73.02
40	5304442145		Door Stop		Appelez-nous	-
41	5304472854		Panel, Door Glass, Black		Appelez-nous	-
42	5304440862		Stop, Door Glass		Appelez-nous	-
43	5304452259		Screw		Appelez-nous	-
44	5304479027		Wiring Harness, Main		Appelez-nous	-
50	5304440870		Wire, High Voltage-a		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
