SELECT A DIAGRAM

01 - Cover


03 - Oven/cabinet

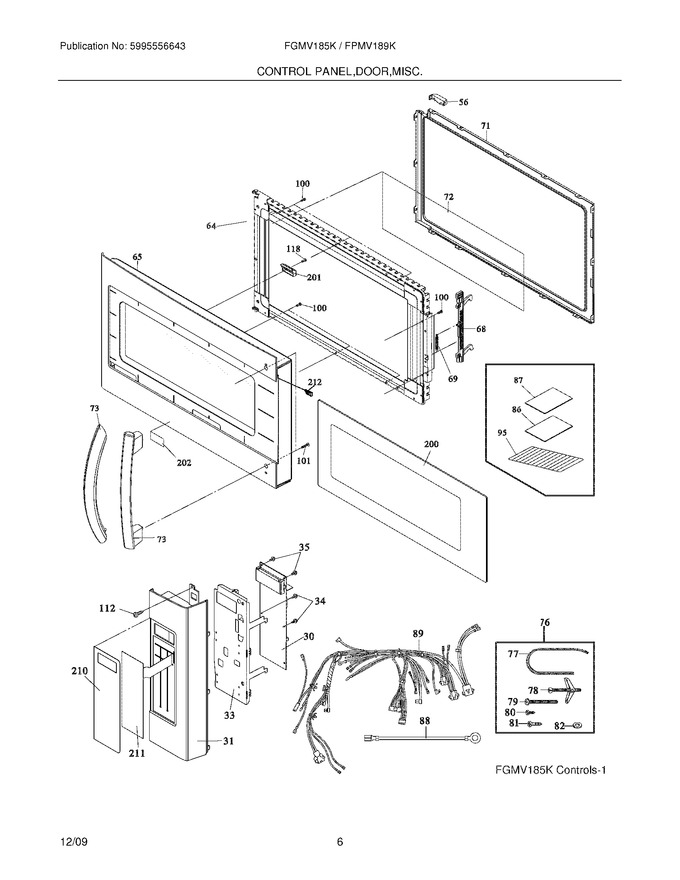

05 - Control Panel,door,misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304472037		Cover,control Panel ,white		Appelez-nous	-
33	5304472039		Panel,control Mount		Appelez-nous	-
34	5304467710		Screw,3 Mm X 8 Mm				$ 14.18
35	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
56	5304463156		Door Stop				$ 32.56
64	5304468946		Panel,inner Door ,white		Appelez-nous	-
65	5304472044		Frame,door ,white		Appelez-nous	-
68	5304467798		Latch,door				$ 33.86
69	5304440316		Spring,door Latch			Immediately	$ 61.00
71	5304467802		Frame,choke Cover ,inner Door				$ 89.85
72	5304467803		Seal,door ,film				$ 24.53
73	5304472046		Handle,door ,white ,gallery		Appelez-nous	-
76	5304464349		Hardware Kit,installation   (Replaces: 5304467765)			Immediately	$ 57.11
77	5303318761		Sleeve,power Cord ,grommet				$ 25.05
78	5303318762		Screw,toggle				$ 11.71
79	5304453895		Screw,5mm X 85mm				$ 16.68
80	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
81	5304453723		Screw,5mm X 35mm				$ 13.28
82	5304453724		Washer				$ 12.68
86	5304467832		Template,installation ,top				$ 19.52
87	5304467833		Template,installation ,wall		Appelez-nous	-
95	5304463180		Rack,microwave Oven ,wire				$ 123.33
100	5304468930		Screw,4 Mm X 10 Mm		Appelez-nous	-
101	5304471832		Screw,4 Mm X 15 Mm				$ 9.53
112	5304451553		Screw,4 Mm X 12 Mm				$ 14.89
118	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
200	5304472048		Glass,door ,white		Appelez-nous	-
201	5304467794		Clip,glass Retainer ,door				$ 15.96
202	5304471837		Badge,nameplate ,gallery				$ 57.49
210	5304472042		Overlay,touch Control ,white		Appelez-nous	-
212	5304473836		Cap,door Glass Clip ,white		Appelez-nous	-
F211	5304472043		Touch Control,key Pad		Appelez-nous	-
F30	5304472034		Control Board,printed Circuit		Appelez-nous	-
F88	5304467828		Wire,ground		Appelez-nous	-
F89	5304468945		Wiring Harness,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
