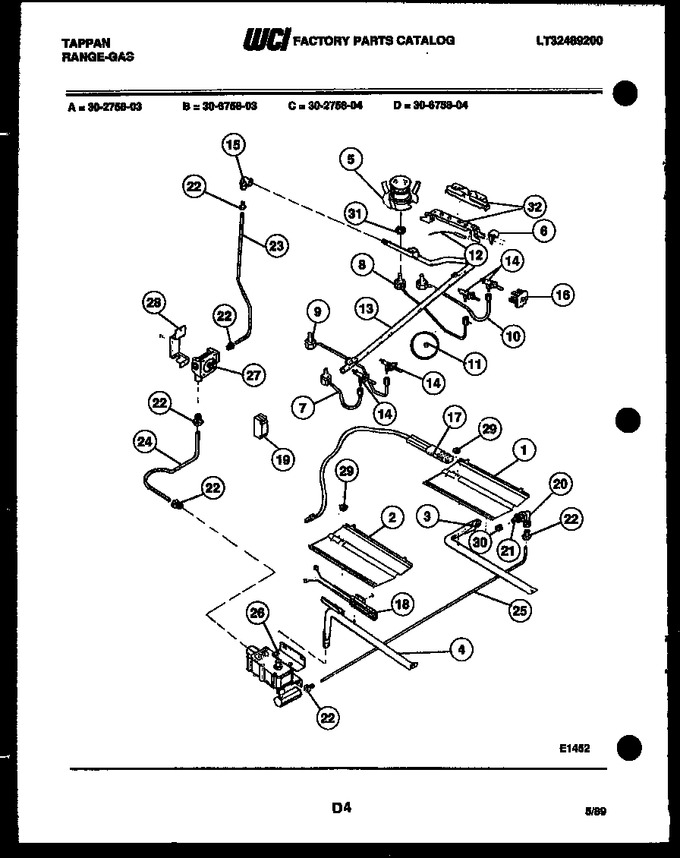

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131283		Baffle, Broil		Appelez-nous	-
2	3131284		Baffle-oven				$ 155.77
3	079T028P01		Burner, Broiler		Appelez-nous	-
4	3131290		Burner-oven		Appelez-nous	-
5	079T032S02		Burner, Top		Appelez-nous	-
6	3018617		Retainer, Igniter		Appelez-nous	-
7	079T033H01		Burner Tube (lf)		Appelez-nous	-
8	079T033H02		Burner, Tube		Appelez-nous	-
9	079T033H03		Burner Tube, Left Rear		Appelez-nous	-
10	079T033H04		Burner, Tube, Right Front		Appelez-nous	-
11	247T074P01		Ferrule (4)		Appelez-nous	-
12	316T034P02		Igniter, Top 50`` (4)		Appelez-nous	-
13	439T055P03		Manifold, Pipe		Appelez-nous	-
15	215T013P01		Elbow 1/2 Np X 9/16-24		Appelez-nous	-
16	695T225P02		Switch-igniter (4)		Appelez-nous	-
17	316T023P12		Igniter-broiler Burner		Appelez-nous	-
18	3131300		Igniter, Oven		Appelez-nous	-
19	3200669		Igniter-module		Appelez-nous	-
20	455T088P02		Mixer Elbow		Appelez-nous	-
21	3131358		Nut-hex		Appelez-nous	-
22	3131261		Fitting, Loxit (6)		Appelez-nous	-
23	3014477		Tube - Alum 3/8		Appelez-nous	-
24	3131109		Tube Alum 3/8		Appelez-nous	-
25	3131364		Tube Alum 3/8		Appelez-nous	-
26	774T116P11		Valve, Safety-dual		Appelez-nous	-
27	166T011P01		Control, Regulator		Appelez-nous	-
28	3131110		Bracket, Regulator		Appelez-nous	-
29	479T069P03		Nut		Appelez-nous	-
30	479T015P08		Spud-50		Appelez-nous	-
31	479T069P40		Nut Special		Appelez-nous	-
*24168	3051420		Pop Rivet		Appelez-nous	-
12A	3131105		Igniter-top Brnr.		Appelez-nous	-
13A	3017542		Valve Top 2 Pos (4)		Appelez-nous	-
15A	3131148		Nut Compressor (4) (non-illustrated)		Appelez-nous	-
26A	3131598		Washer-repair		Appelez-nous	-
32A	136T355W03		Channel, Flash Tube		Appelez-nous	-
