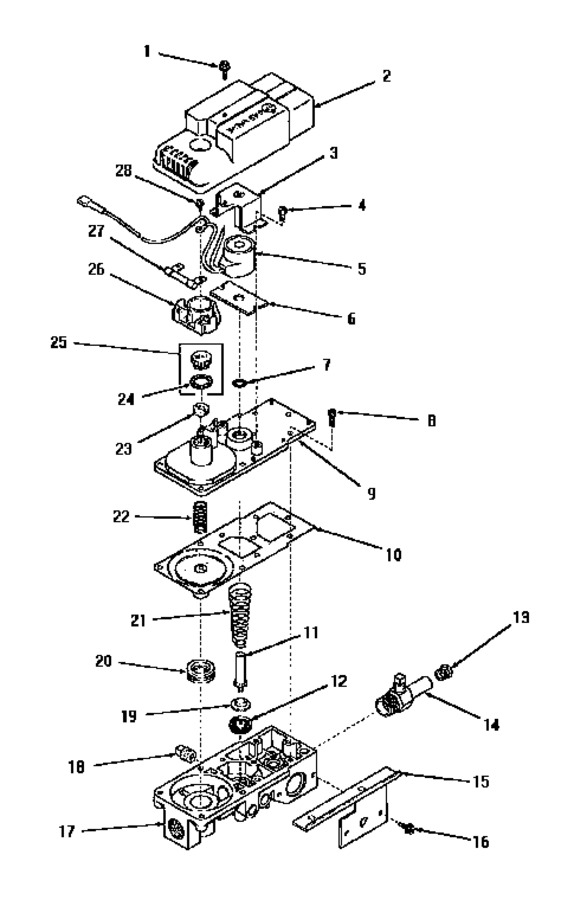

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Sub. To D510151W		Screw, 6b-20x5/16   (Replaces: 51782)		Appelez-nous	-
2	53428N		Valve Housing		Appelez-nous	-
3	53377B		Plunger Guide And Bracket		Appelez-nous	-
4	53428J		Hex Head Screw		Appelez-nous	-
5	53428A		Coil,burner		Appelez-nous	-
6	53377C		Plate		Appelez-nous	-
7	53377D		O-ring		Appelez-nous	-
8	53379E		Hex Head Screw		Appelez-nous	-
9	53428E		Valve Cover		Appelez-nous	-
10	53428F		Diaphragm And Gasket		Appelez-nous	-
11	53428D		Plunger Shaft		Appelez-nous	-
12	53428H		Plunger Seat		Appelez-nous	-
13	51209		Orifice,ng		Appelez-nous	-
14	53377W		Burner Orifice Adapter		Appelez-nous	-
15	53377Q		Mounting Bracket		Appelez-nous	-
16	53379D		Hex Head Screw		Appelez-nous	-
17	53428L		Valve Body		Appelez-nous	-
18	20247		Plug,pipe		Appelez-nous	-
19	53377L		Stiffener		Appelez-nous	-
20	52966R		Regulator Seat		Appelez-nous	-
21	53428G		Valve Spring		Appelez-nous	-
22	53377X		Regulator Spring		Appelez-nous	-
23	52966M		Regualtor Screw		Appelez-nous	-
24	52966L		Gasket		Appelez-nous	-
25	53952		Screw,vent		Appelez-nous	-
26	53428M		Mount,resistor		Appelez-nous	-
27	52966B		Resistor		Appelez-nous	-
28	53428K		Hex Head Screw		Appelez-nous	-
NI	53428		Gas Valve		Appelez-nous	-
