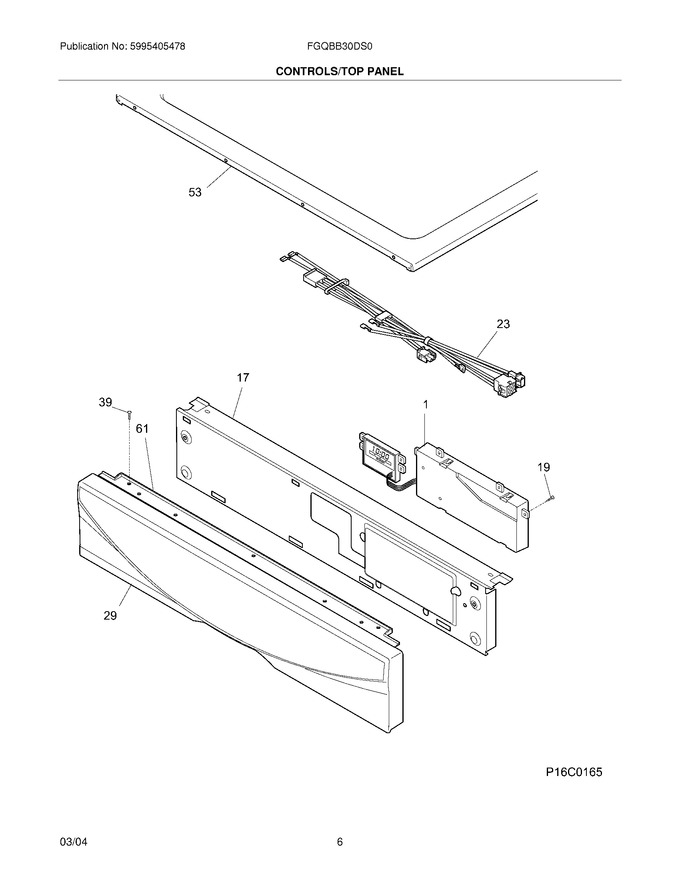

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
17	134195700		Bracket,control Mtg.		Appelez-nous	-
19	134205400		Screw,pan Head ,6-19 X 0.500 ,type P		Appelez-nous	-
39	134178900		Screw,quad ,8-18ab X 0.455		Appelez-nous	-
53	134164202		Panel,dryer Top ,white ,top				$ 78.30
61	134167300		Drip Rail,dryer Console		Appelez-nous	-
F1	134208151		Control Board,printed Circuit ,with Display		Appelez-nous	-
F23	134288900		Wiring Harness,controls		Appelez-nous	-
F29	134208360		Frame,control Console ,with Membrane				$ 372.85
NI	134288800		Wiring Harness,main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
