SELECT A DIAGRAM

01 - 143p3 Rear Exhaust Deflector Kit


02 - 159p3 Side Exhaust Deflector Kit


03 - 160p3 Bottom Exhaust Deflector Kit


04 - 20600 Vent Kit


05 - 53428 Gas Valve (nat. / Mixed Gas)


06 - Automatic Ignition Burner

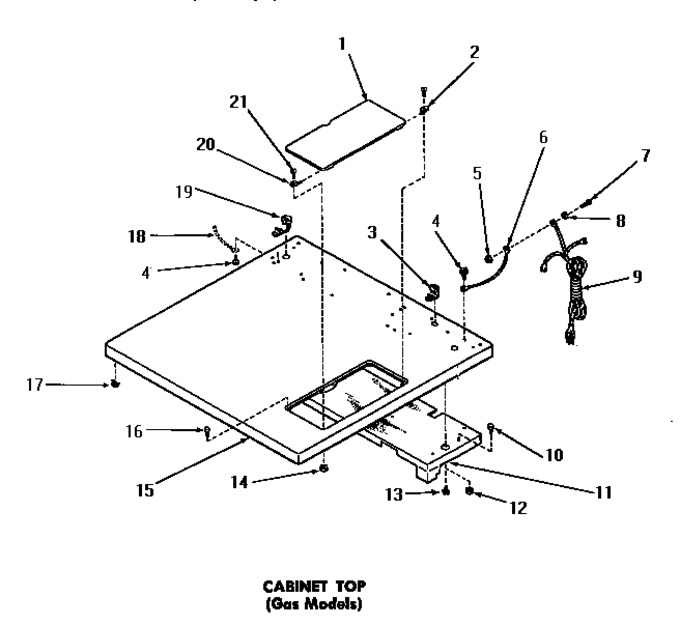

07 - Cabinet Top


08 - Clothes Drum


09 - Control Hood


10 - Control Panel, Control Hood & Controls


11 - Door Release


12 - Drum Light & Cover Plate


13 - Drum Light & Cover Plate


14 - Exhaust Fan


15 - Front Frame & Air Shroud


16 - Heater Box


17 - Loading Door


18 - Loading Door


19 - Motor, Idler & Belt


20 - Panels


21 - Rear Frame & Frame Base


22 - Wire & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52518A		Access Door, Avocado		Appelez-nous	-
1	52518C		Access Door, Coppertone		Appelez-nous	-
1	52518H		Xreplace		Appelez-nous	-
1	52518W		Access Door, White		Appelez-nous	-
2	51351		Hinge,rear		Appelez-nous	-
3	21903		Strain Relief		Appelez-nous	-
4	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
5	M0282009		Locknut   (Replaces: 23951)				$ 12.06
6	54300		Ground Wire, Green		Appelez-nous	-
7	20267		Screw,10-24 X 3/8 Round		Appelez-nous	-
8	Y03185		Xreplace		Appelez-nous	-
9	51508		Power Cord		Appelez-nous	-
10	51355		Bumper		Appelez-nous	-
11	52614		Top Baffle Assembly		Appelez-nous	-
12	Y52136		Locknut		Appelez-nous	-
13	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
14	SM5038-12		Nut,nylon   (Replaces: 22678)			Immediately	$ 53.70
15	52503H		Cabinet Top, Harvest Gold		Appelez-nous	-
15	52503C		Cabinet Top, Coppertone		Appelez-nous	-
15	52503W		Cabinet Top, White		Appelez-nous	-
15	52503A		Cabinet Top, Avocado		Appelez-nous	-
16	53445		Bumper		Appelez-nous	-
17	23007		Caged Nut		Appelez-nous	-
18	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
19	Sub. To D510402P		Relief,strain   (Replaces: 52113)		Appelez-nous	-
20	51350		Hinge,front		Appelez-nous	-
21	03630		Screw,6-32 X 3/8 Round		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
