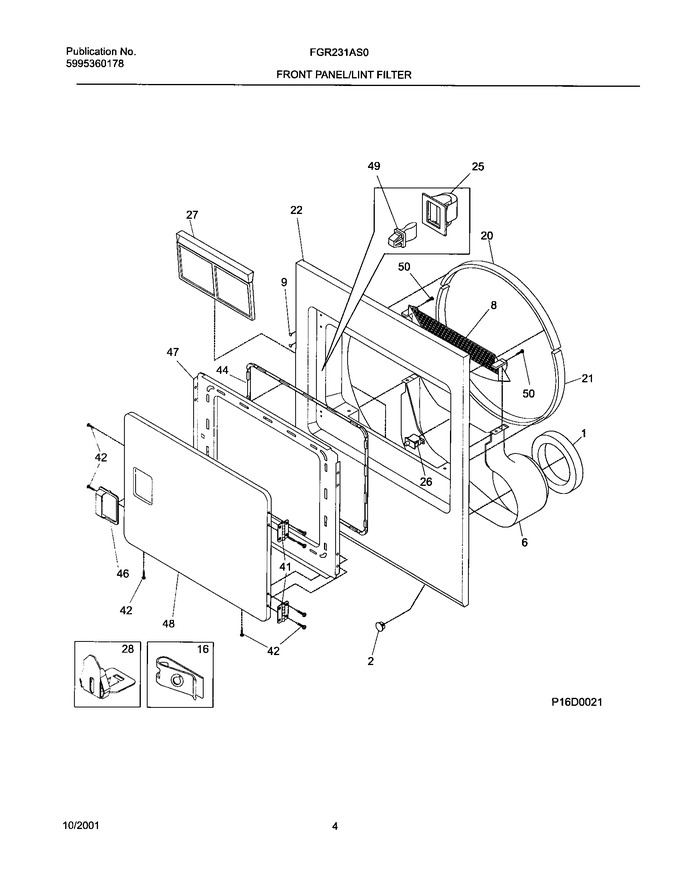

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Dry Cab,heater
05 - Frnt Pnl,door
07 - Control Panel
09 - Motor,blower
11 - Burner,valve
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134417000 | Seal-air Duct 2.5no. Low Perm (Replaces: 134063300) |
|
Immediately | $ 9.22 | ||||
| 2 | 131397000 | Plug-dome-white |
|
$ 14.12 | |||||
| 6 | 131621900 | Duct-air |
|
- | |||||
| 8 | 131622202 | Cover-lint Housing |
|
$ 94.82 | |||||
| 9 | 131633200 | Plug,white |
|
$ 15.90 | |||||
| 16 | 131063700 | Clip-wiring |
|
$ 18.11 | |||||
| 20 | DE790 | Glide-drum (Replaces: 5303937139) |
|
Immediately | $ 40.53 | ||||
| 21 | 5303283286 | Seal-basket Lower |
|
$ 48.04 | |||||
| 22 | 131845912 | Front Panel W/lite Wht |
|
- | |||||
| 25 | 131658800 | Catch-door |
|
Immediately | $ 68.38 | ||||
| 26 | 134813600 | Switch-door W/o Lite (Replaces: 131843100) |
|
Immediately | $ 43.09 | ||||
| 27 | 131450300 | Lint Trap |
|
Immediately | $ 30.47 | ||||
| 28 | 5303281074 | Clip-guide,(3) |
|
$ 18.27 | |||||
| 41 | 134222900 | Hinge-door (Replaces: 131627500) |
|
$ 22.68 | |||||
| 42 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 44 | 137551901 | Gasket-door (Replaces: 131129900) |
|
Immediately | $ 41.00 | ||||
| 46 | 131644700 | Handle-door, White |
|
Immediately | $ 59.54 | ||||
| 47 | 131844104 | Panel-inner Door White |
|
$ 224.12 | |||||
| 48 | 131789303 | Door-outer, White |
|
$ 168.47 | |||||
| 49 | 5303207102 | Strike Door (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 131303300 | Screw-lock, Ph Ab, 10-16 X .50 |
|
- | |||||
| NI | 131474700 | Insulation |
|
$ 33.67 | |||||
| NI | 5308027429 | Adhesive, High Temp |
|
Immediately | $ 60.25 | ||||
| NI | 137576600 | Plug-light Hole (Replaces: 131870700) |
|
Immediately | $ 14.18 |
