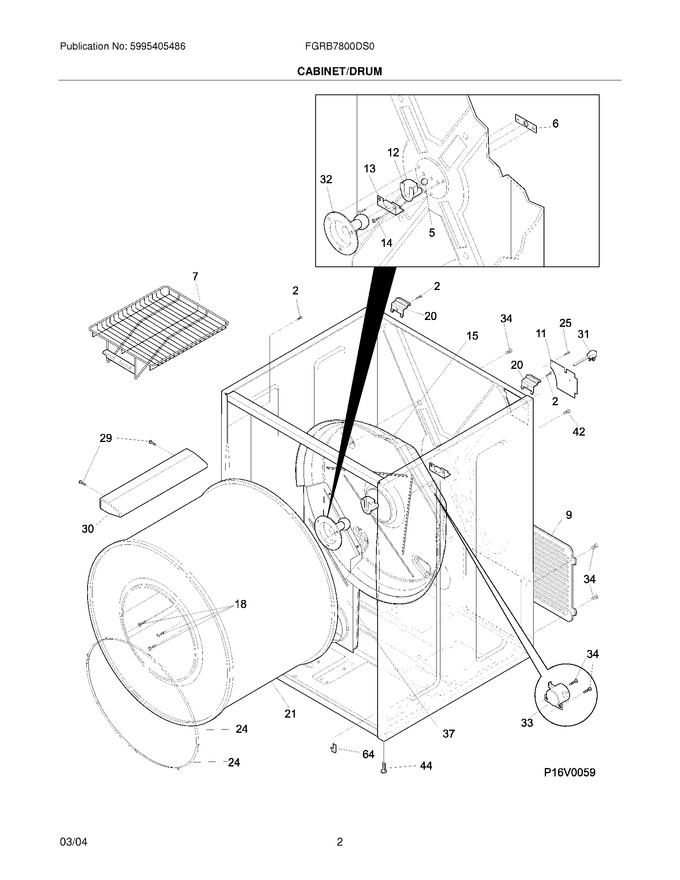

03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
5	5303281019		Ball				$ 16.30
6	5303281020		Clip,ball ,steel ,flat Nut				$ 17.01
7	134121200		Rack,drying		Appelez-nous	-
9	131793201		Panel,access ,rear		Appelez-nous	-
11	131363200		Cover-terminal Block		Appelez-nous	-
12	131825900		Bearing-drum Support			Immediately	$ 10.97
13	131724301		Bracket,bearing Support   (Replaces: 131724300)			Immediately	$ 25.66
14	131205400		Screw,bracket Mtg. ,10-16b X 1.375 ,cr/sq Drive				$ 12.76
18	131168200		Screw,10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
20	131469100		Bracket,hinge ,rear ,top Panel Mtg.				$ 44.84
21	134122532		Drum,dryer ,galvanized Stl. ,service Kit				$ 484.07
24	137513300		Glide-drum   (Replaces: 131963900)			Immediately	$ 36.68
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
29	131382300		Screw,quadrex Head ,10-14 X 1.00 ,vane Mtg.,special			Immediately	$ 13.46
30	137552900		Vane,straight   (Replaces: 5303201200)				$ 54.95
32	131777700		Shaft,drum Support ,ballhitch			Immediately	$ 71.87
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
37	131952100		Duct-heat		Appelez-nous	-
42	134154100		Screw,hex Washer Head ,10-32 X 0.375 ,ground				$ 13.46
44	134158000		Leveling Leg,screw		Appelez-nous	-
64	131704600		Clip				$ 17.69
F15	131600500		Housing, Gas Heater Assy, W/seal		Appelez-nous	-
F31	134102200		Cord-electric Power		Appelez-nous	-
F33	5308015399		Thermostat - Safety				$ 242.18
NI	5303281153		Rear Bearing Kit, Includes 5, 6, 12, 13, 14, 18, 32			Immediately	$ 46.64
NI	5303307893		Lubricant, High Temp				$ 34.02
NI	134101400		Terminal Block,main			Immediately	$ 55.99
